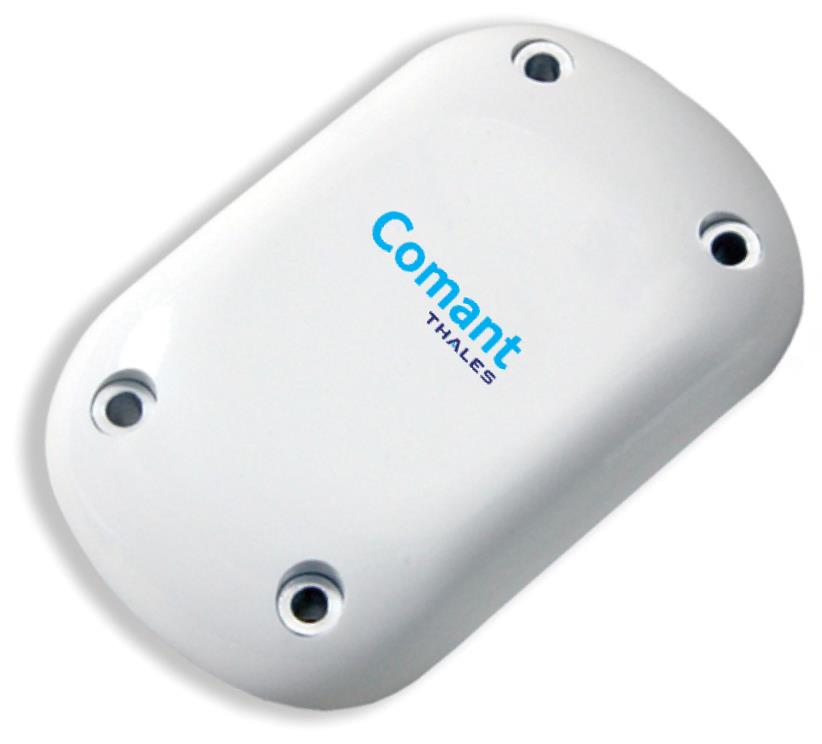

Comant’s four through hole rectangle style mount (ARINC 743A footprint) Iridium antenna with TNC port and GPS non WAAS with BNC port.
Iridium C159d certified primary designed for airborne bi-directional NGSS (Next Generation Satellite Systems) communication/data function between aircraft and the Iridium satellite constellation.
A secondary non-flight critical function of the antenna is to provide a non-navigational GPS feature. It receives data from the GNSS (Global Navigation Satellite System) constellation to report the geographical location of aircraft around the globe.
Suitable for top mounting for both light and heavy fixed wing single engine / multi-engine, helicopter and business jet aircraft.
Frequencies
1616.0 - 1626.5 MHz (L Band - Iridium)
1575.42 MHz (L1 Band - GPS)
Nominal 27 dB Gain
RF Characteristics
Iridium: TX / RX 1616.0-1626.5 MHz
VSWR: 1.5:1 Max
Polarization: RHCP
Radiation Pattern: Hemispherical
Impedance: RF 50 Ohms
Power Handling: TX 6.5 Watts Average
Lightning Protection: DC Grounded
Gain: +4 dBic @ Zenith
Mechanical
Weight: 8.5 oz.
Finish: Glossy White
Connector: TNC (Female)
Federal Specifications
FAA: TSO C159d
RTCA: Environmental DO-160G
GPS Preamplifier Characteristics
Frequency: 1575.42 MHz +/- 3 MHz
VSWR: 1.5:1 Max
Polarization: RHCP
Radiation Pattern: Hemispherical
Impedance: 50 Ohms
Gain: @ 1575.42 MHz 26.5-30.1 dB
DC Voltage: 2.8-24 Volts
DC Current: Min/Max 30mA Min / 50mA Max
Noise: Figure 2.5 dB Max
Selectivity: -50 dB Min @ Satcom Frequency
