Home HN Male Connector, Clamp/Solder, Straight

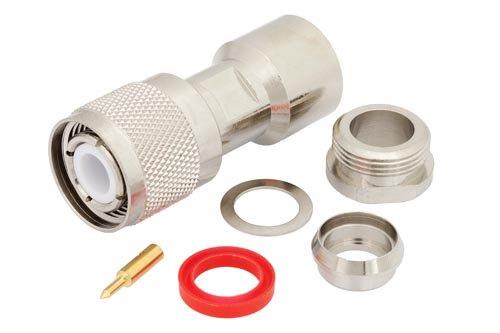

HN Male Connector, Clamp/Solder, Straight

Out of stock
Product code: PE4182

HN Male Connector Clamp/Solder Attachment for RG-213, RG-214, RG-8, RG-9, RG-225, RG-393.

$0.00

PE4182 HN male coaxial connector has an interface type of RG213, RG214, RG8, RG9, RG225, RG393 and a 50 Ohm impedance. Pasternack HN male connector uses shield/contact clamp/solder as an attachment method. Our male HN coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack HN male coaxial connector has a PTFE dielectric type and a VSWR of 1.5. The Pasternack HN coaxial connector has a brass body with nickel plating. Our PE4182 HN connector uses brass contact. This HN male coaxial RF connector is RoHS and REACH compliant.

  • HN male connector
  • MIL-STD-348A
  • 50Ω impedance
  • 6 GHz Max. operating frequency
  • VSWR: 1.5:1
  • Gold-plated brass contact



Download Data Sheet

Unit of Measure: Each
Supplier/Manufacturer SKU: PE4182
Mil Spec, TSO, Certification: MIL-STD-348A
HS Code: 8536694010
HAZMAT:
UN#:
