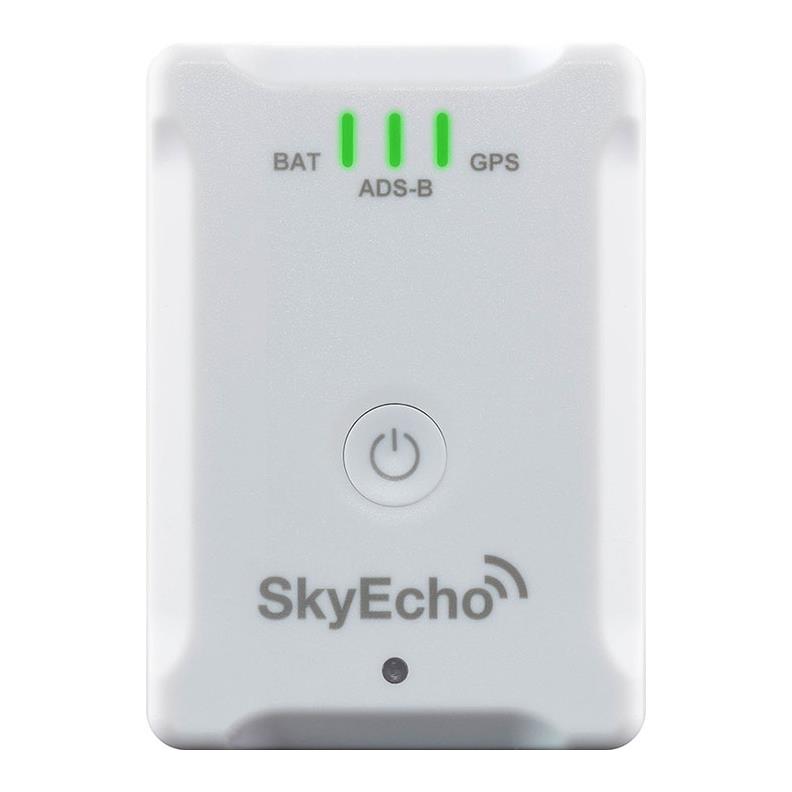

SkyEcho2 is the world’s first commercially available portable ADS-B IN and OUT system. Complete with an integrated TSO certified SBAS GPS and barometric altimeter, SkyEcho2 transmits your aircraft location, altitude, and identification via 1090MHz ADS-B, enabling you to be seen by nearby aircraft equipped with an ADS-B receiver. In Australia, the integrated ADS-B IN receiver connects wirelessly to your favourite Electronic Flight Bag (EFB) application adhering to an industry-standard protocol for ADS-B traffic – including OzRunways and AvPlan EFB.
| Specification | Value |
|---|---|
| Operating Time: | 12 hours |
| Operating Power: | 3 watts |
| Size: | 57x82x30mm |
| Weight: | 120 grams |
| SDA/SIL: | 1/0 (TSO-C199 GPS) |
| Operating Temp: | -45 to 70°C |
| Transmitter | |
| Frequency: | 1090MHz ±1MHz |
| Transmit Power: | 20W Nominal |
| Frequency: | DO-260B DF-18 |
| Receiver | |
| 1090 Performance: | -93 to 0dBm |
| 978 Performance: | -103 to 0dBm |
| WAAS GPS | |
| Augmentation: | SBAS |
| Sensitivity: | -167dBm |
| Altimeter | |
| Range: | -1000 to 60,000ft |
| Interfaces | |
| Wi-Fi: | 802.11 b/g/n 2.4GHz. 4 simultaneous Connections |
| Ports: | USB-C |
Unit of Measure: EACH
Supplier/Manufacturer SKU: UAX-90034-01
Mil Spec, TSO, Certification: n/a
