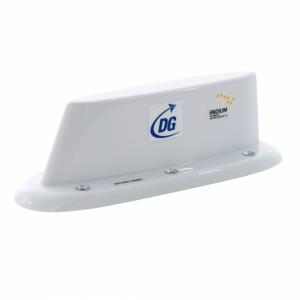

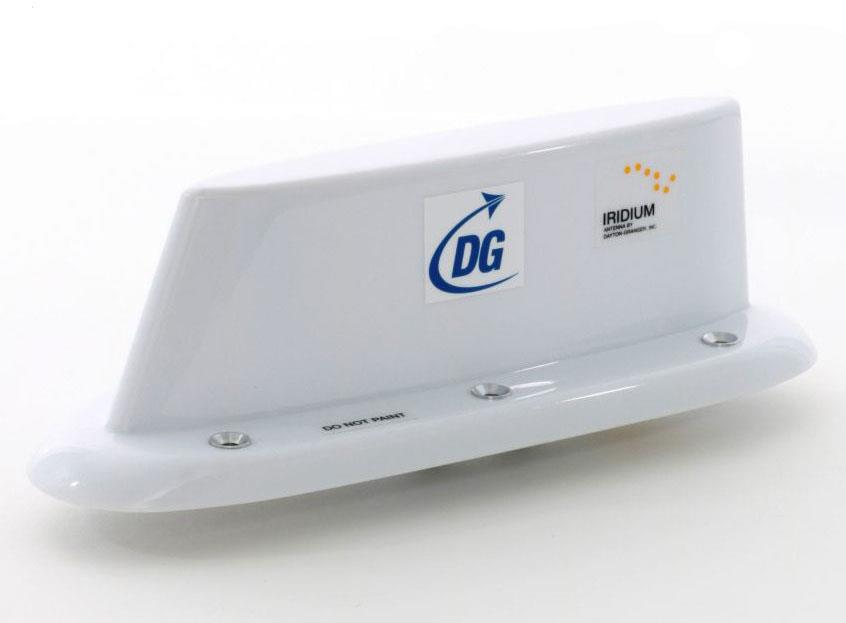

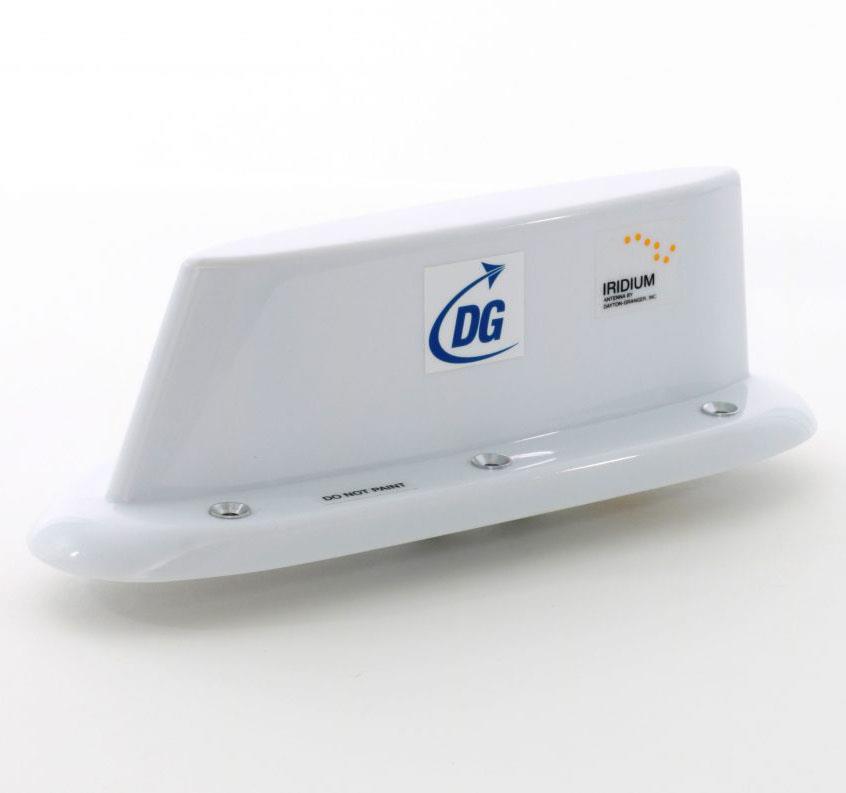

The L10-806 Iridium/GPS antenna is a dual-function, dual-connector, short blade that provides excellent coverage in both the Iridium and GPS-L1 bands.
The integrated LNA for the GPS band offers a low noise figure and high gain. Additional filtering yields an effective out-of-band rejection and reduces the risk of saturation by interfering signals.
Type: Blade
Sub-Type: Iridium, GPS
Function: Navigation
Connector: TNC
Height: 3.084
Weight: 1.2
Colour: White
Frequency Range (MHz): 1616-1626.5 MHz; 1575.42±10 MHz
Polarization: RHC
Impedance: 50 Ohms
Speed Rating: 600 knots
