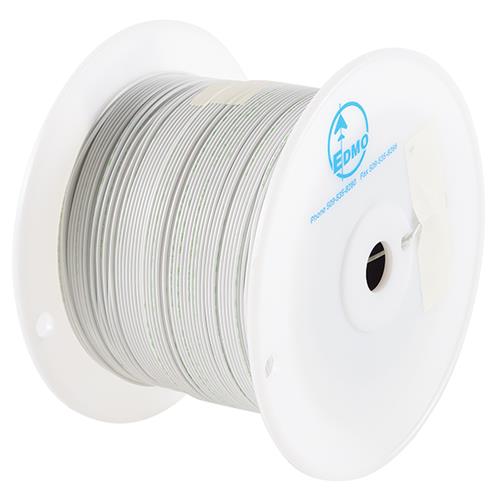

Composed of a 19/34 stranded tinned copper conductor with cross-linked ethylene tetrafluoroethylene (XL-ETFE) insulation and jacket. These cables are rated for a voltage of 600 volts, have a maximum temperature of 150???C, and weigh approximately 3.2 lbs/MFT.
Conductor Stranding: 19/34
No. of Strands: 19
Strand Size: 34
Approx LBS/MFT: 3.20
Max. Resistance @ 20???C OHMS/MFT: 16.20
Min O.D. (in): 0.048
Max O.D. (in): 0.052
M27500 Component: SD
Mil-Spec: M22759/34
SAE Spec: AS22759/34
Cond. Material: Tinned Copper
Insul. Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp: 150???C
Unit of Measure: FEET
Supplier/Manufacturer SKU: M22759/34-20-9
Mil Spec, TSO, Certification: M22759/34-20-9
HS Code: 85444930
HAZMAT:
UN#:
