Home Toggle Switch, DPDT, ON-ON-ON (MS27407-1, 2TL1-12)

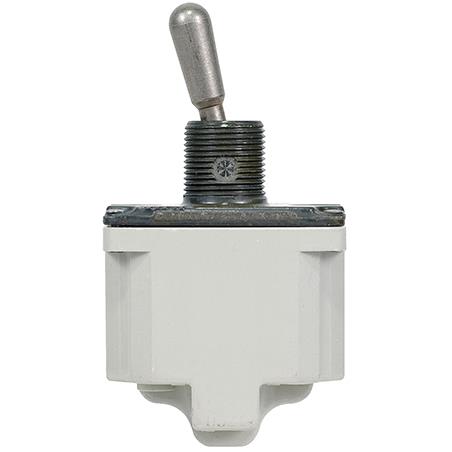

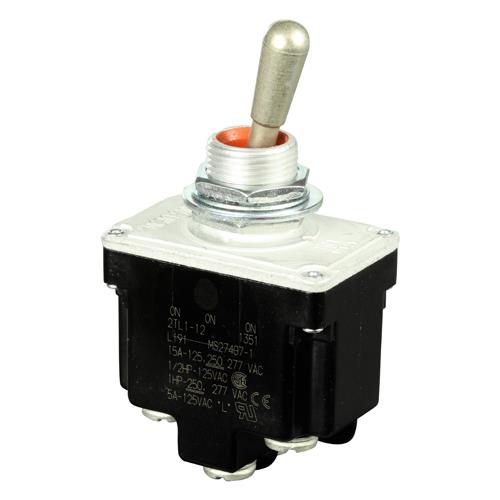

Toggle Switch, DPDT, ON-ON-ON (MS27407-1, 2TL1-12)

In stock
Product code: 8501K14

Environmentally Sealed Toggle Switch, Bushing Mount, DPDT, Screw Terminal, 125VAC.

$105.00 $0.00

The 8501K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.

  • Threaded panel mount
  • Thermoset molding materials meet flame retardant requirements
  • Molded-in terminal inserts and terminal numbers
  • Environmentally sealed per MIL-S-3950
  • MS approved and QPL'd per MIL-S-3950
  • Life: 20,000 operations at rated load 40,000 operations mechanical life
Contact Configuration: DPDT
Contact Current Rating: 20 A
Mounting Type: Bushing
Terminal Type: Screw
Illuminated: No
Voltage Rating: 125 VAC, 250 VAC, 277VAC
Contact Material: Silver Alloy, Gold Plated
Maximum Operating Temperature: +71°C
Minimum Operating Temperature: -65°C
Operating Temperature Range: -65 → +71°C
Unit of Measure: EACH
Supplier/Manufacturer SKU: 8501K14
Mil Spec, TSO, Certification: MS27407-1
HS Code: 8536.50.9000
HAZMAT:
UN#:
