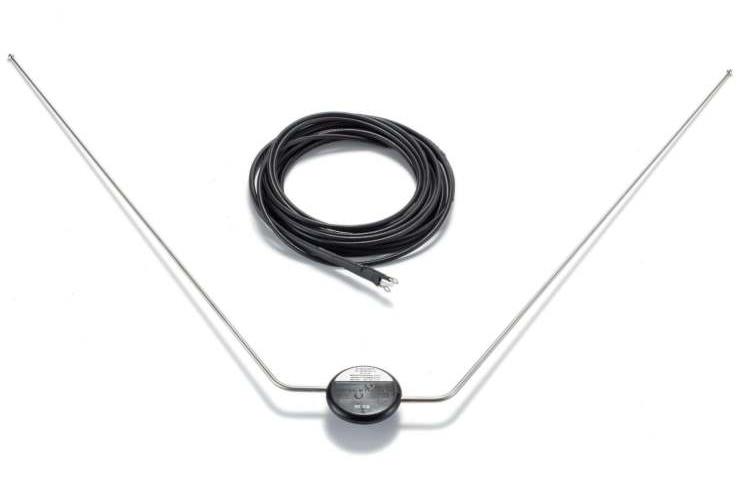

The AV-12 is a VOR/LOC/GS receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L operates at both UHF and VHF frequencies. A 25-ft. transmission line with integral balun transformer is also supplied.
| Model | AV-12L |
| Application | VOR/LOC/GS Receive Only |
| Frequency | 108 – 118 MHz 328 – 336 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 2.2:1 Maximum |
| Polarization | Horizontal |
| Pattern | Omni-Directional |
| Connector | Threaded studs to accept transmission line assembly with integral balun transformer |
| Max. Weight | 5.5 oz. (14 oz. with cable) |
| Width Across Tips | 29.5″ |
| FAA TSO | C40c |
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-12L
Mil Spec, TSO, Certification: C40c
HS Code: 8529.10.4000
