Home 20Deg Lead-Thru Insulator, Chuck Jaws, Solder Lugs

20Deg Lead-Thru Insulator, Chuck Jaws, Solder Lugs

2 in stock
Product code: 25ARM300-20E-20

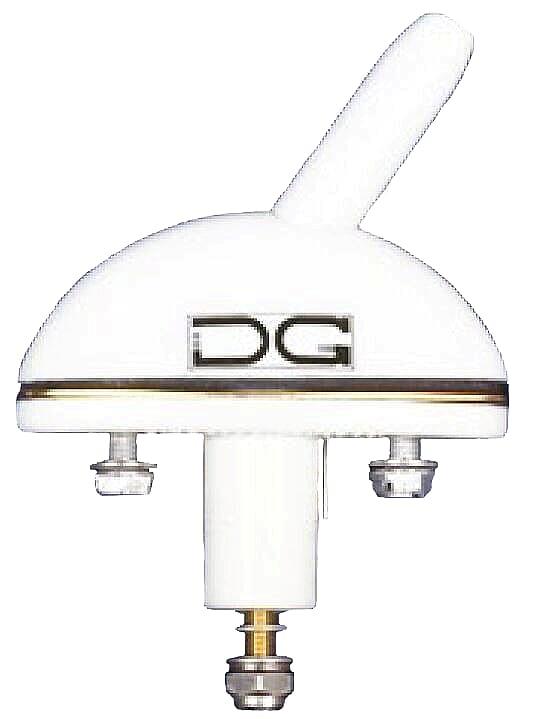

An aircraft HF antenna lead-through assembly to connect the long wire to the aircrafts radio equipment.

$0.00
RRP: $920.00

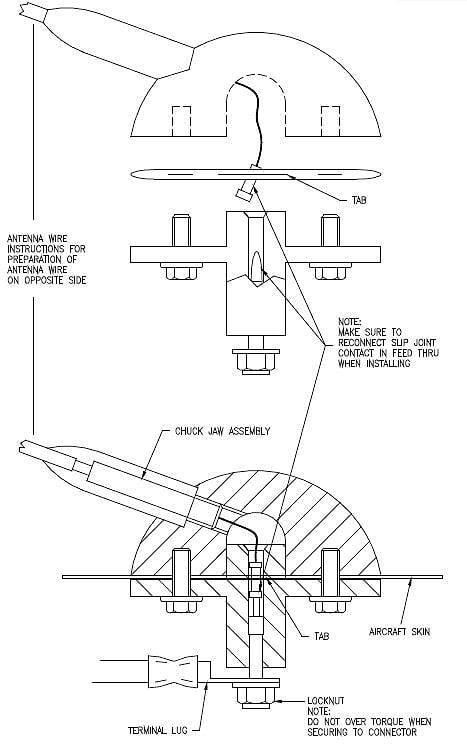

The lead-thru insulators with "E" in the part number come complete with solder lugs for inserting a shunt capacitor across the lead-thru to ground as required with some ADF antennas. They also have chuck jaws in the cap for securing the antenna wire.
Dimensions: 70.00 x 90.00 x 70.00 mm (H x W x L)
Weight: 82.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: 25ARM300-20E-20
Mil Spec, TSO, Certification:
HS Code: 8529.90.4700
HAZMAT:
UN#:
