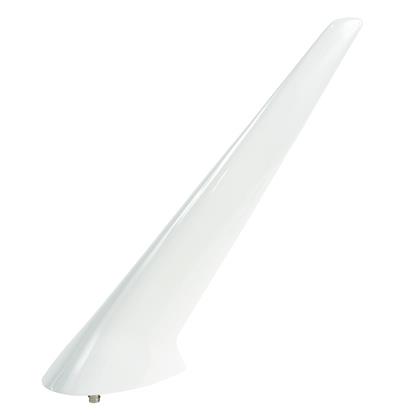

The CI 138 antenna is a four-internal-hole-mount style VHF communication blade antenna with offset BNC port. This antenna is equivalent to the CI 119 except for the mounting hole pattern and BNC connector location. It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 118–137 MHz frequency range
- Aerodynamic base
- 4-hole mounting
- Valox 420 housing
- For light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters
Specifications
Weight:
1.25 lbs
Height:
13 in
Frequency:
118–137 MHz
VSWR:
2.9:1 Max
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
Power:
25 W
Material:
Valox 420
Finish:
Glossy White
Connector:
Offset BNC Female
Temperature:
-55ºC to 85ºC
Altitude:
50,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
C13804 Cork Neoprene
Dimensions: 85.00 x 135.00 x 660.00 mm (H x W x L)
Weight: 796.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 138
Mil Spec, TSO, Certification: C37d, C38d
HS Code: 8529.10.4000
