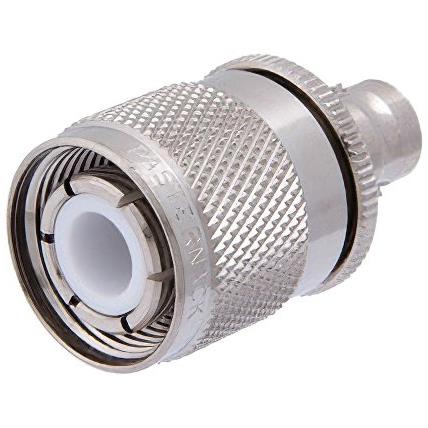

The PE9126 HN male to BNC female adapter features a straight body geometry and a gold-plated brass contact. This connector also has maximum 1.5:1 VSWR up to 4 GHz with a 50Ω impedance and is MIL-STC-348A compliant.
This HN to BNC adapter is a between series coaxial adapter design. This 50 Ohm HN adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 4 GHz.
Features
- Straight body geometry
- 1.5:1 maximum VSWR up to 4 GHz
- 50Ω impedance
- Gold-plated brass contacts
- HN & BNC compliant MIL-STD-348A compliant
| Connector Series 1 | HN |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | BNC |
| Connector Gender 2 | Female |
| Connector Polarity 2 | Standard |
| Connector Impedance 2 | 50 Ohm |
| Frequency, Min | DC |
| Frequency, Max | 4 GHz |
| Adapter Body Style | Straight |
| Connector Mount Method 1 | None |
| Connector Body Material 1 | Brass |
| Connector Body Plating 1 | Nickel |
| Connector Mount Method 2 | None |
