Home M22759/16 Extruded ETFE Tefzel Wire, 20AWG, White/Blue Stripe

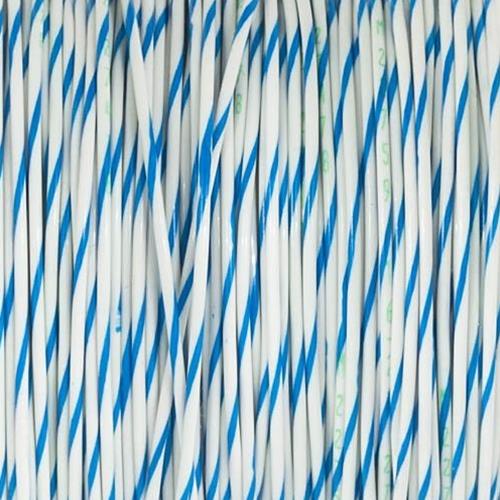

M22759/16 Extruded ETFE Tefzel Wire, 20AWG, White/Blue Stripe

Out of stock
Product code: 20G/16-96

M22759/16-20-96 Tin-plated copper conductor

$0.00

Composed of a 19/34 stranded tinned copper conductor with ethylene tetrafluoroethylene (ETFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 150C, and weigh approximately 4 lbs/MFT. M22759/16 wires have green or white print on the insulation for identification purposes.

  • Conductor Stranding: 19/34
  • No. of Strands: 19
  • Strand Size: 34
  • No. of Cond: 1
  • Min O.D. (in): 0.050
  • Max O.D. (in): 0.054
  • Approx LBS/MFT: 4.00
  • M27500 Component: TE
  • Mil-Spec: M22759/16
  • SAE Spec: AS22759/16
  • Cond. Material: Tinned Copper
  • Insul. Material: Ethylene Tetrafluoroethylene (ETFE)
  • Max. Temp: 150C
