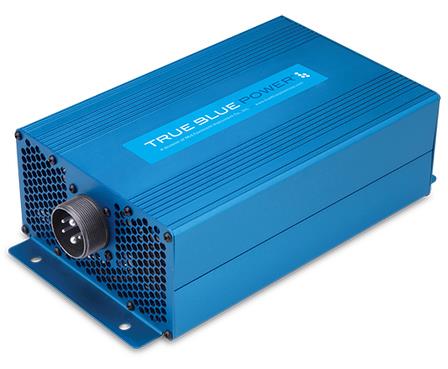

Supply 1,200 watts of power at 50 Hz to a variety of cabin accessories, galley equipment, entertainment and aircraft systems with the TSO-certified True Blue Power TI1202 Inverter. Lighter and smaller than competing inverters, the TI1202 power output is compatible with the electrical standard in more than 90 countries.
Features
- Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
- Ideal for use in special mission and VIP cabin configurations
- Compact design — 30% smaller than competing products
- Lightweight — 7.3 lbs
- 88% efficiency
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Input Voltage: 20 – 36 VDC
Input Current: 60 A at 28 VDC input
Output Voltage: 230 VAC ± 3%
Output Power: 1200 VA
Output Frequency: 50 Hz ± 0.1%
Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
Weight: 7.3 lbs (3.31 kg)
Altitude: 55,000 ft
Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75°F to 160°F
Temperature: -67°F to +158°F (-55°C to +70°C)
Integral Cooling: Dual, electronically-controlled brushless fans
Mating Connector: 9017235-1 (connector), 9017235-2 (cable clamp)
Case: Anodized aluminum extrusion, blue
Certification
FAA TSO-C73 certified
EASA ETSO-C73 certified
RTCA DO-160G qualified
