The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

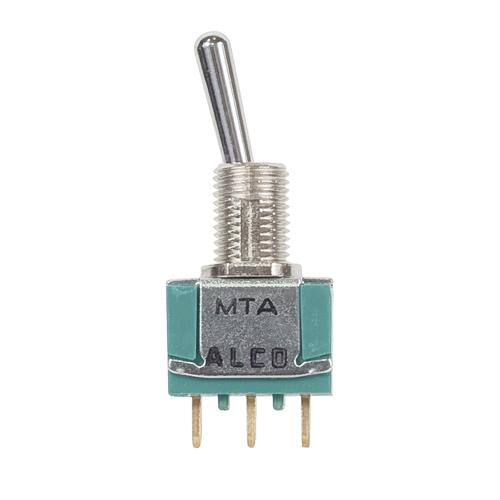

Version MTA-106D is a single-pole, double-throw toggle switch. Positions: ON-ON
- Wire lug, PC terminals
- Threaded panel mount
- Overmolded terminals
- 10 mOhms maximum Initial contact resistance
- 1,000 MOhms minimum insulation resistance
- 1500VRMS at sea level Minimum dielectric strength
- RoHS Compliant
- Break-before-make contact timing
Unit of Measure: EACH
Supplier/Manufacturer SKU: 1-1437558-0
Mil Spec, TSO, Certification:
HS Code: 85365090
HAZMAT:
UN#:
