HIGH-PERFORMANCE MINIATURE CONNECTOR PERFECT FOR AEROSPACE APPLICATIONS

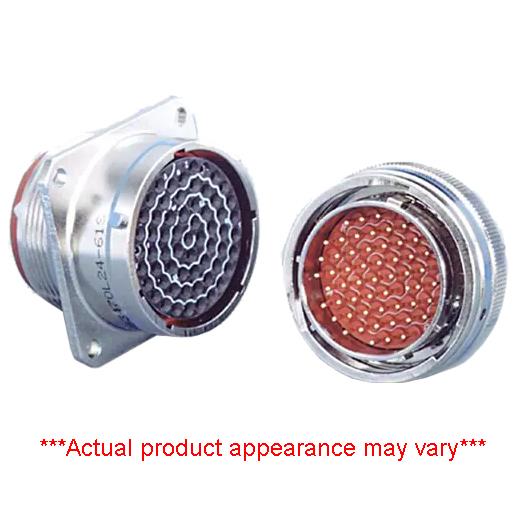

Amphenol’s MB MIL-DTL-26482 series II (Matrix®) miniature cylindrical connectors have a quick-mating, three-point bayonet coupling system. Given their small size and high-quality contact retention and seal, MB series connectors are excellent for high-reliability applications in the harshest conditions, including the aerospace industry.
PRODUCT INFORMATION
| Specification: | MIL-DTL-26482 |
| Sealing: | IP67 |
| Shielding: | Yes |
| Connector Type: | Circular |
| Connector Style: | Receptacle |
| Mounting Type: | Wall - Front Mount - Thru Holes |
| Contacts, # of: | 32 |
| Contact Style: | Socket |
| Termination Method: | Crimp |
| Crimp Wire Gauge: | 24, 22, 20 |
| Insert Arrangement: | 18-32 |
| Contact Size: | 32#20 |
| Contacts Supplied: | Yes |
| Contact Material: | Copper Alloy |
| Contact Plating: | 50 microinches Gold Plate |
| Shell Material: | Aluminum Alloy |
| Shell Plating: | Electroless Nickel |
| Shell Color: | Silver |
| Insert Material: | Hard Dielectric |
| Grommet & Seals Material: | Silicone |
| Amperage Rating: | 7.5A |
| Operating Voltage AC V RMS Max: | 600 |
| Operating Temperature °F (°C): | -67 to +392 (-55 to +200) |
| Contact Mating Life: | 250 |
| Insert Rotation/Keying: | Normal |
| Service Rating: | I |
| Export Class: | EAR / EAR99 |
| RoHS: | Yes |
| Weight (lbs): | Unknown |
| Weight (g): | Unknown |
Unit of Measure: EACH
Supplier/Manufacturer SKU: MS3472L18-32S
Mil Spec, TSO, Certification: MIL-DTL-26482 II
