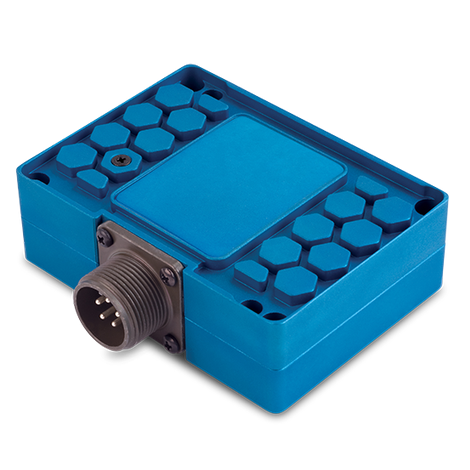

TC120 DC to DC Converter with Remote ON/OFF

24–32 VDC in, 5–18 VDC out, 120 watts, With remote on/off feature

• Supplies 120 watts of 5 to 18-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
• Compact design — lighter and smaller than competing units
• Lightweight — 0.6 lbs
• Remote On/Off
• 120 watts output power
• >90% efficiency
• Input Voltage: 24 – 32 VDC
• Input Current: 5.0 A Nominal
• Output Voltage: 5 – 18 VDC
• Input transient, overload, and short-circuit protection
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C71 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Input Voltage
24 – 32 VDC

Input Current
5.0 A Nominal

Output Voltage
5 – 18 VDC

Output Power
120 watts

Efficiency
>90%

Weight
0.65 lbs (0.29 kg)

Altitude
55,000 ft

Temperature
-65°F to +160°F (-55°C to +70°C)

Protection
Input transient, overload, short-circuit protection

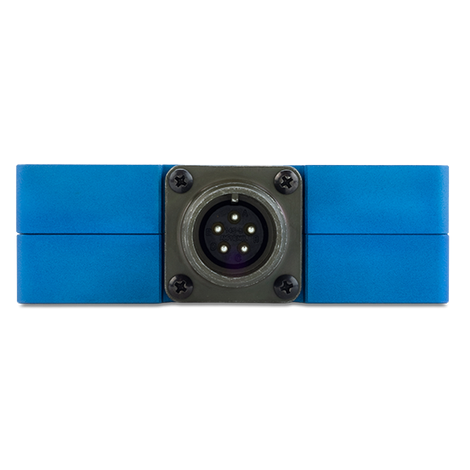

Mating Connector
MS3106A-14S-5S

Case
Anodized aluminum, blue

Certification
FAA TSO-C71 certified
RTCA DO-160G qualified
