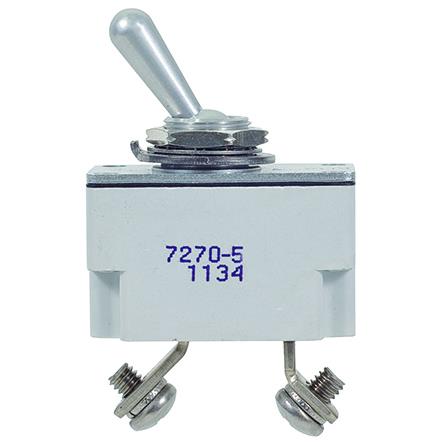

The Klixon® 7270 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7270-5 series circuit breaker feature a single pole, bat handle toggle actuator.
Includes hardware.
Features
This 7270-5 series circuit breaker is rated for 35 amps.
- Bat handle toggle actuator
- Trip-free operation
- Snap-acting thermal element
- Small size
- Light weight
- MIL-C-5809 qualified
- Current ratings (3 to 35 amps)
- High interrupting capacity
Weight:
39 grams maximum
Current Rating:
35 amps
Vibrations:
10G minimum, 50–500 Hz
Mechanical shock:
30G
Acceleration:
10G
Endurance:
5,000 cycles: 120 VAC. 400 Hz, inductive
5,000 cycles: 120 VAC 400 Hz, resistive
5,000 cycles: 30 VDC, inductive
2,500 cycles: 30 VDC, resistive
5,000 cycles: Mechanical, no load
Mounting:
Screw terminals and neck mounting
