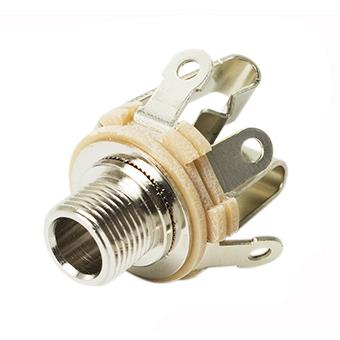

Switchcraft 1/4-inch, 3-circuit stereo open frame jacks mate with standard commercial phone plugs.

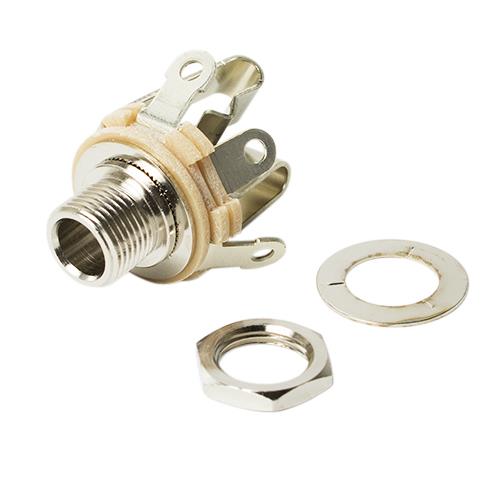

This 1/4-inch open frame jack has a 3-circuit stereo plug and 0.25 inch jack inside diameter. Supplied with one hex nut and one copper alloy washer.
- Nickel-plated mounting brushing
- Rigid plastic Insulation
- Copper alloy springs
- Copper alloy terminal
Specifications
Width:
0.75 in
Mounting Depth:
1 in
Plug Diameter:
0.210 in
Insertion Force:
7 lb (commercial plug)
Withdrawal Force:
1 lb (commercial plug)
Contact Resistance:
0.030Ω, maximum
Insolation Resistance:
10,000 MΩ
Dielectric withstanding Voltage:
500V, 60 Hz (rms) AC
Contact Rating:
1A, 25 VDC
Unit of Measure: EACH
Supplier/Manufacturer SKU: 12B
Mil Spec, TSO, Certification:
HS Code: 8536.69.4030
HAZMAT:
UN#:
