HI-TAK Polyurethane Conductive Gasket, CI-2480-200, CI-420-220

In stock

Product code: AG843000-60

Pre-cured, low-resistance, polyurethane conductive antenna gaskets that deliver improved avionics reliability.

$225.00 $0.00

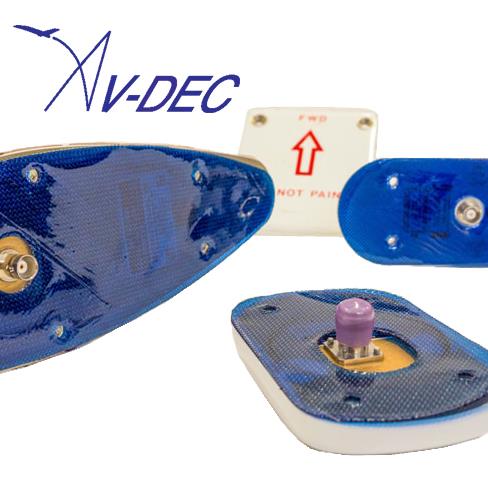

HI-TAK^® Antenna Gaskets, Conductive and Non-Conductive

Gaskets are die-cut from conductive or non-conductive mesh encapsulated with a soft, tacky and pliable polyurethane sealant
Durable environmental seal for exceptional antenna and airframe corrosion prevention
Improved antenna reliability and reduced corrosion-related removals and inspections
Die cut to ensure consistent fit and sealing over the entire surface
Aluminum carrier in the conductive HI-TAK antenna gaskets provide electrical bonding of less than 2.5 mΩ
Fastener protection: When the gasket is compressed between the faying surfaces, the sealant is forced into areas of lower compression, such as the fastener holes, holes for connectors, or the perimeter of the gasket
Conductive HI-TAK antenna gasket approved for use in CID A-A-59398A
FAA PMA available for selected part numbers
"Apply and Fly™" gasket for easy installation
Non-hazardous (no VOCs) and no residue left behind
Most antenna footprints available - or request a custom gasket to fit your application
Available as a Conductive or Non-Conductive gasket to suit system requirements

Unit of Measure: EACH

Supplier/Manufacturer SKU: AG843000-60

Mil Spec, TSO, Certification:

HS Code: 3926.90.4500

HAZMAT:

UN#:
