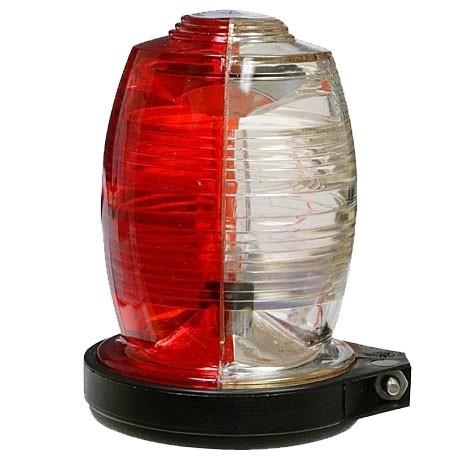

Self-contained halogen flashing anti-collision light with the same mounting pattern as the factory installed beacon on single engine Cessna's 1967 & later. Available in three different lens colours, Aviation Red, Aviation White and Split Aviation Red/White. When used in conjunction with the model 50519 mounting adapter, it can replace rotating beacons with the 3-3/4 dia. mounting hole. Note: Not recommended for installation on helicopters or twin engine aircraft.
- Drawing Number: 70509
- Weight: 0.27 lbs. (122gm)
- Height: 3.75 (95mm)
- Diameter: 2.65 (67mm)
- Power Consumption: 2.7 amps @ 14 VDC, 1.3 amps @ 28 VDC
| Model | Part # | Description | Approvals |
| 7050900 | 01-0770509-00 | 14 VDC, Red lens | FAA TSO-C96a |
| 7050901 | 01-0770509-01 | 14 VDC, White lens | FAA TSO-C96a |
| 7050902 | 01-0770509-02 | 14 VDC, Red/White lens | FAA TSO-C96a |
| 7050903 | 01-0770509-03 | 28 VDC, Red lens | FAA TSO-C96a |
| 7050905 | 01-0770509-05 | 28 VDC, Red/White lens | FAA TSO-C96a |
| 7050907 | 01-0770509-07 | Cessna single engines | FAA TSO-C96a |
Unit of Measure: EACH
Supplier/Manufacturer SKU: 01-0770509-02
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
