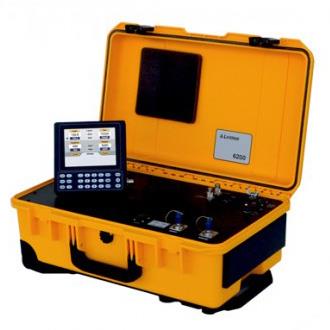

The Model 6250 is the ideal RVSM Pitot Static tester for light RVSM Jets. It is used to perform leak-checks and accuracy checks on RVSM aircraft. Accuracy checks are typically performed on altimeters, airspeed indicators and VSI’s. The high accuracy of the Pitot output is ideally suited for checks at low airspeeds. The Model 6250 includes a Remote unit with large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. The unit can be controlled by an iPad or other tablets.
Application: Small jets, Helicopters and General-Aviation aircraft.
Removable-Battery (“-B”), Heater (“-H”) and Encoder-interface (“-E”) options available
ALT Ranges: 1 to 32 inHg, -2,000 ft. to 50,000 ft., Accuracy 0.003 inHg
VSI Ranges: 0 ft. to 10,000 ft./min Accuracy 1% of Rate
Airspeed Ranges: 0 to 15 inHg, 0 to 500 knots, Accuracy 0.003 inHg
Airspeed Rate: 0 to 500 knots/min
Mach Range: 0 to 1.0 Mach Accuracy 0.001 above 0.2 Mach
Operating temp. 0 to 50oC, -40oC to 55oC (Optional)
