Home DME Transponder Antenna, Stub, BNC, TSO, RAMI

DME Transponder Antenna, Stub, BNC, TSO, RAMI

Coming soon
Product code: AV-22

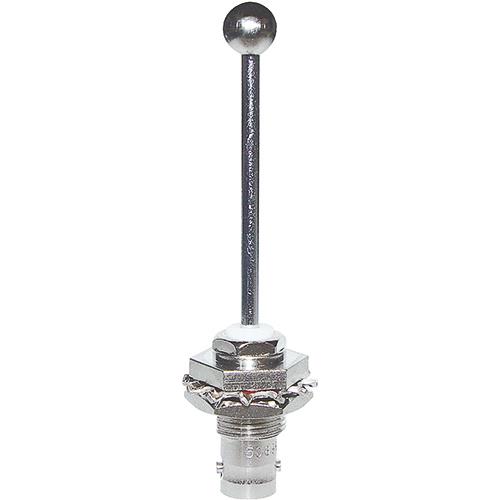

The AV-22 is a rod style transponder antenna which utilizes a BNC connector that allows for a smaller mounting hole. It is a direct replacement for the CI 101.

$141.00 $0.00

1030-1090MHz.

This general aviation antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet.

It has a drag force of 0.41 lbs @ 250 mph.

Model AV-22
Application Transponder
Frequency 1030-1090 MHz
Impedance 50 Ohms Nominal
VSWR 1.3:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “BNC” Female
RF Power Capacity 1 KW Peak Pulse @ 1% Duty Cycle
Max. Weight 1 oz.
FAA TSO C74c
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-22
Mil Spec, TSO, Certification: C74c
HS Code: 85291040
HAZMAT:
UN#:
