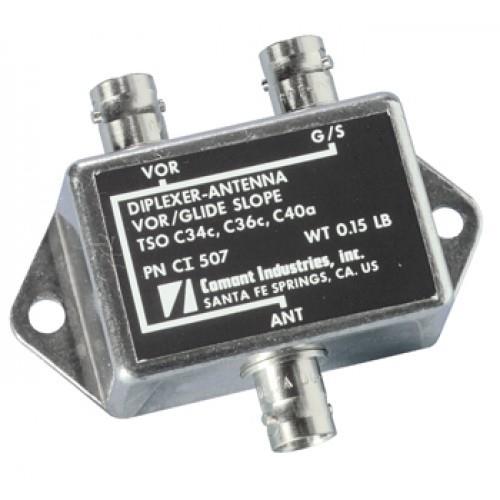

VOR/GS Diplexer, BNC, 2-hole mount

Converts a single VOR / LOC / GS antenna signal into one VOR / LOC and one GS signal output. Designed for avionics units that require a split NAV signal. Suitable for internal aircraft mounting.

Applications

Internal Aircraft Mounting
Warranty: 3 Years
Always consult your installation shop for best application.

Frequencies Covered

108 - 118 MHz (VHF - VOR / LOC)
329 - 335 MHz (UHF - GS)

Specifications

Frequency 108-118 MHz & 329-335 MHz
VSWR 1.5:1 Max
Isolation 20 dB Max
Insertion Loss 0.5 dB Max
Impedance 50 Ohms
Weight 0.20 lb
Height 0.88 in
Material Die Cast Aluminium
Finish Aluminium
Connectors BNC (female)
N/A Internal Mount
FAA TSO C34c, C36c, C40a
