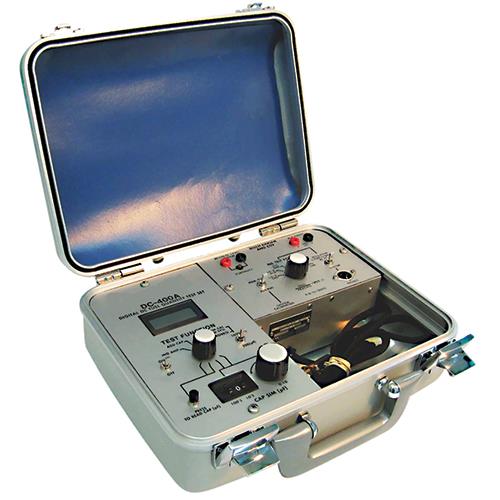

The DC-400A is a completely self-contained, portable, lightweight, internal battery powered DC fuel quantity system Test Set. It is specifically designed to enable testing and calibration of a wide range of Aircraft DC Fuel Quantity Systems when connected to the proper Adapter Module. The systems can be serviced and their component parts can be bench-tested without additional harnesses or test equipment.
Features and Benefits:
- Capability to test all components and wiring in the aircraft's DC fuel quantity system
- Interchangeable Adapter Modules, dedicated to specific aircraft
- Capability to bench check aircraft fuel quantity system components
- LED display with prompt for low battery condition
- Power supply: 12 V with eight (8) 1.5 V AA batteries
- State-of-the-art low battery drain circuitry
- Human engineered for maximum ease of operation and maintenance
- Temperature operating range: 32°F to 122°F (0°C to 50°C)
Test set carrying case is fabricated from drawn aluminum for maximum strength with flanges in upper and lower halves. The case has supports for securing the Adapter Module and provides space for the DC-400A and Adapter Module. Case also contains a well for storage of its integral interfacing harnesses.
Dimensions:
Length: 12.2 in (31.0 cm)
Width: 10.4 in (26.4 cm)
Height: 5.3 in (13.5 cm)
Weight: 7.0 lbs (3.2 kg)
