Home Contact Socket, Size 16, 16-20AWG, Crimp

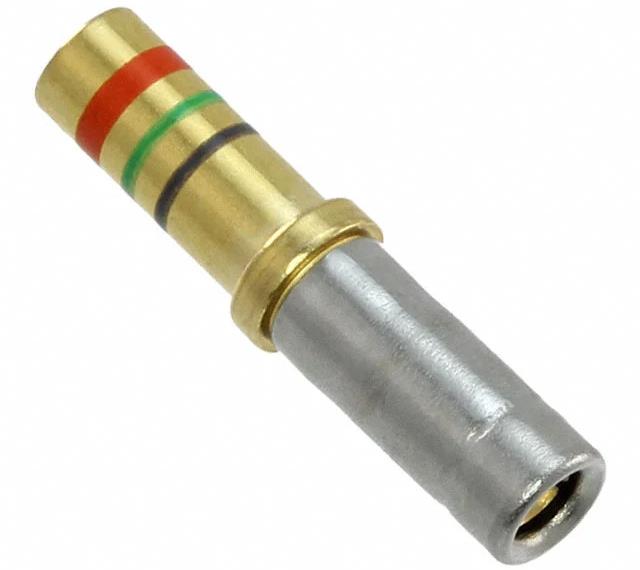

Contact Socket, Size 16, 16-20AWG, Crimp

Out of stock
Product code: 3902957358

Standard size 16 contacts accept 16 to 20 AWG wire.

$0.00

Gold crimp M39029/57-358

Standard size 16 contacts accept 16 to 20 AWG wire. At rated test current of 13 amps, the maximum voltage drop is 74 millivolts. Contacts are gold-plated copper alloy. Socket contacts feature stainless steel hoods to protect against probe damage. Approved to SAE-AMS-39029.

Specifications

Contact Type: Socket

Contact Size: 16

Termination Style: Crimp

Contact Plating: Gold

Test Current: 13 amps

Maximum Voltage Drop: 74 mV
