FM Extended Band Antenna, Rod, BNC, 4-hole mount, RAMI

In stock
Product code: AV-14

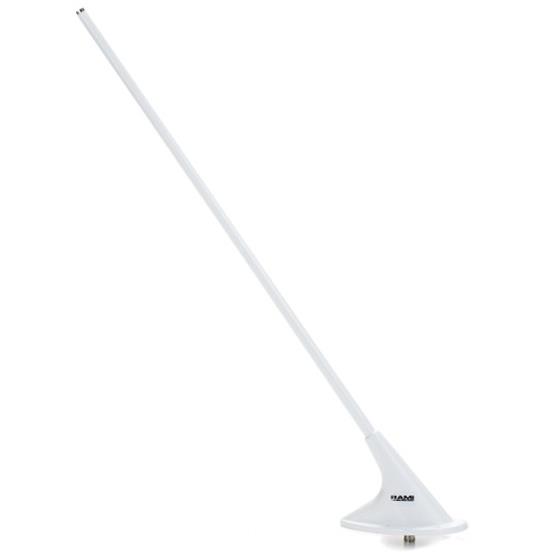

The AV-14 is a general aviation antenna that is similar to the AV-10 using the same 4-bolt mounting base except it has a shorter radiating whip element.

$410.00 $0.00

The antenna is designed to operate in the Public Service and Business Bands 138-174 MHz.

The AV-14 operates at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.

This antenna is a direct replacement for the CI 177-1.

Model AV-14
Application Airborne Communications
Frequency 138 – 174 MHz
Impedance 50 Ohms Nominal
VSWR 2.0:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “BNC” Female
Max Height 18.12″
RF Power Capacity 25 Watts
FAA TSO C37d, C38d

Specifications & Data Sheet

Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-14
Mil Spec, TSO, Certification:
HS Code: 8529.10.0000
