Home CONNECTOR | N Male, Crimp/Solder, Straight, RG-142 & RG-400

CONNECTOR | N Male, Crimp/Solder, Straight, RG-142 & RG-400

Out of stock
Product code: PE4042

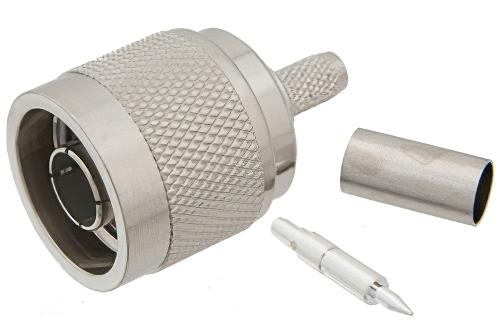

The PE4042 N male connector features a crimp/crimp attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable.

$84.00 $0.00

The connector operates up to a maximum frequency of 12.4 GHz and has a 50Ω impedance. This N connector has a brass body with nickel plating and uses brass contact.

50 ohm (NOTE: This will not mate with 75 ohm N connectors.)

  • N male connector
  • MIL-STD-348
  • 50Ω impedance
  • 12.4 GHz Max. operating frequency
  • Silver-plated brass contact

Weight: 0.072 lb (32.66 g)

Dimensions: 1.43 x 0.812 in (36.32 x 20.32 mm)

Body Geometry: straight

Connect Interface Types: RG55, RG141, RG142, RG223, RG400

Contacts: silver-plated brass contact

Contact Plating: ASTM-B700



Unit of Measure: EACH
Supplier/Manufacturer SKU: PE4042
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
