Home ETA Nov 26 for new stock - V Tension Unit, Pass-Thru Hole, Quick Disconnect, 32.7cm (Temporary production delay)

ETA Nov 26 for new stock - V Tension Unit, Pass-Thru Hole, Quick Disconnect, 32.7cm (Temporary production delay)

1 in stock
Product code: 5ARM300-6LV-3

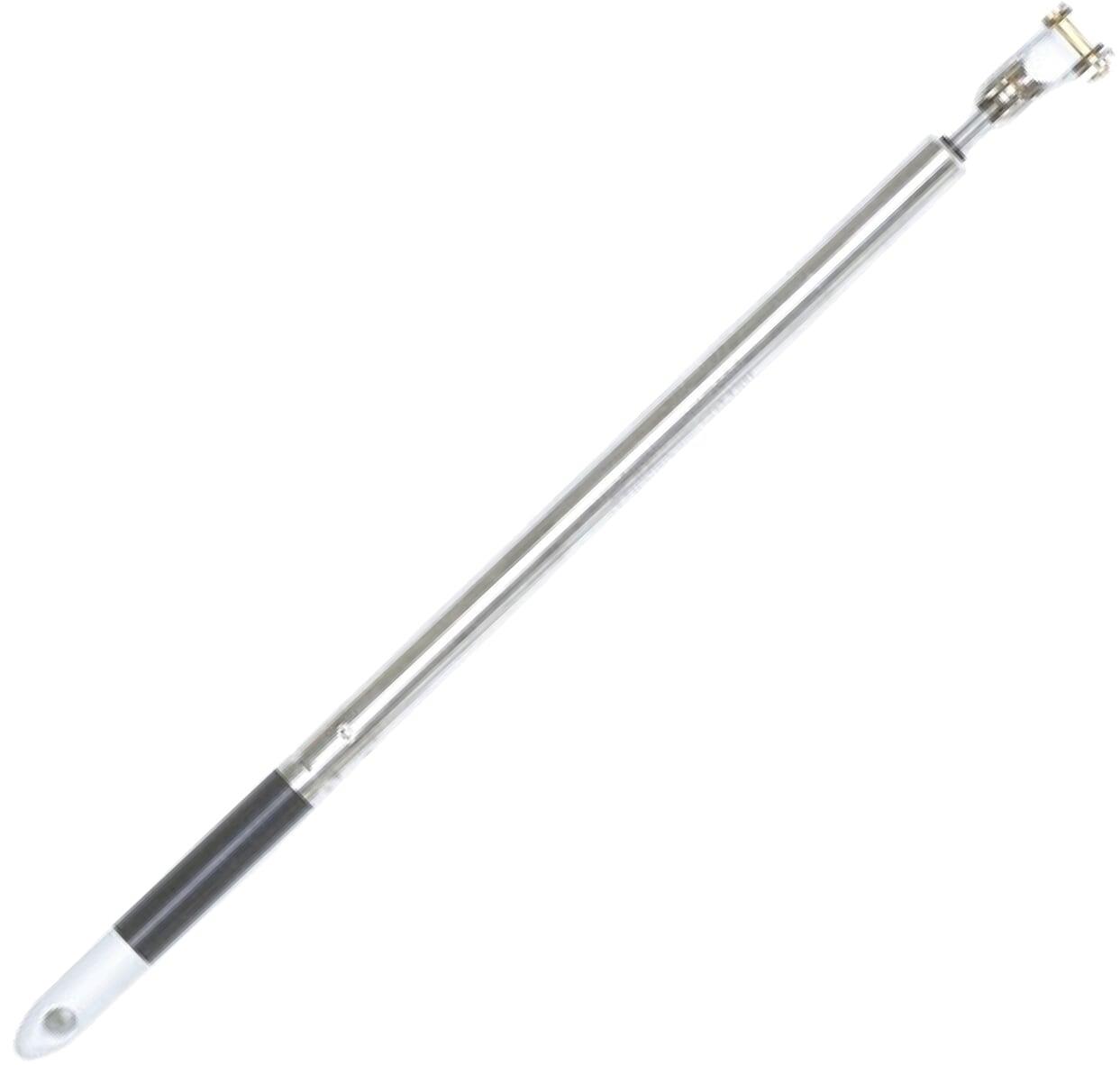

"V" Tension Unit - Insulated, Pass thru hole, Quick Disconnect, 32.7cm. Part of the subassembly of the HF Antenna Longwire System.

$0.00
RRP: $1,360.00

PN 5ARM300-6LV is part of the subassembly of the HF Antenna Longwire System; Attached to the tail of the aircraft, the wire is looped into the other end to provide tension to an unbroken wire.

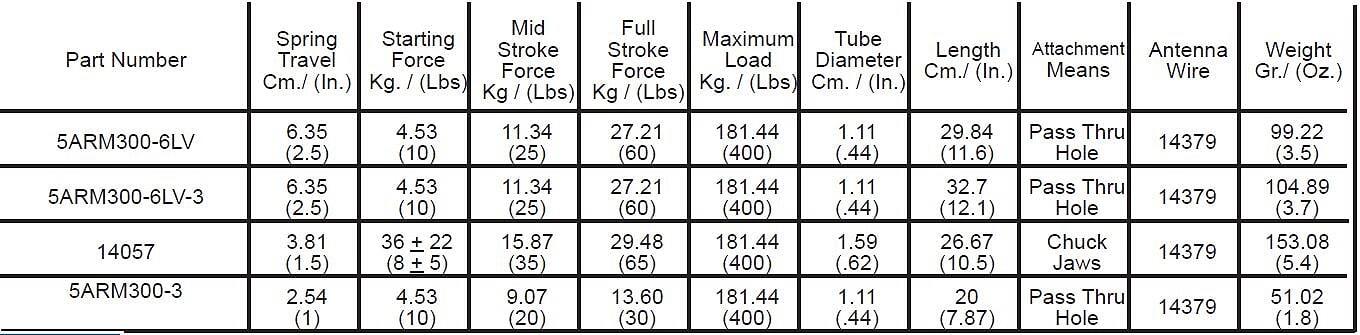

Antenna Wire: DG PN 14379
Attachment Means: Pass thru hole
Full Stroke Force: 60 lbs
Length: 11.6 in
Load Rating: 400 lbs
Mid Stroke Force: 25 lbs
Spring Travel: 2.5 in
Starting Force: 10 lbs
Tube Diameter: .44 inches
Voltage Rating: 4.2 kV peak
Weight: 3.5 ounces

Unit of Measure: EACH
Supplier/Manufacturer SKU: 5ARM300-6LV-3
Mil Spec, TSO, Certification:
HS Code: 8529.90.4700
HAZMAT:
UN#:
