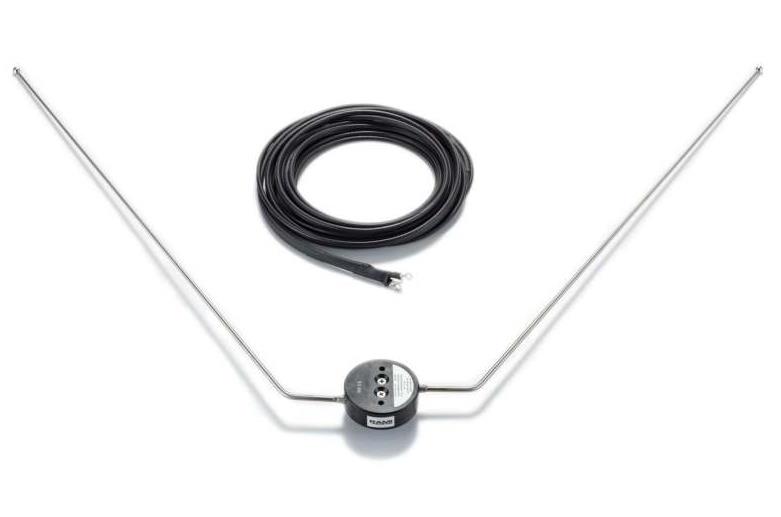

The AV-532L is a VOR/LOC/GS receive only antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 foot transmission line with integral balun is also supplied.
| Model | AV-532L |
| Application | VOR/LOC/GS Receive Only |
| Frequency | 108-118 MHz 328-336 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 2.0:1 Maximum |
| Polarization | Horizontal |
| Pattern | Omni-Directional |
| Connector | Threaded studs to accept transmission line assembly with integral balun transformer (included) |
| RF Power Capacity | Receive Only |
| Max. Weight | 11 oz. (14 oz. with cable) |
| FAA TSO | C40c |
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-532L
Mil Spec, TSO, Certification: C40c
HS Code: 8529.10.4000
HAZMAT:
