FEP Insulated Thermocouple K-Type Wire, Series 507, 24AWG

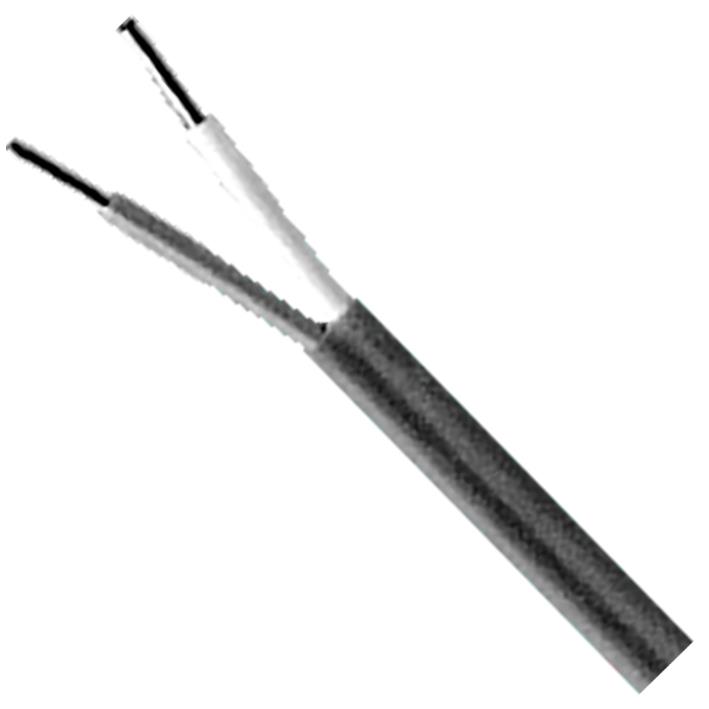

FEP Insulated Thermocouple Wire SERIES 507

The SERIES 507 is the most economical fluoroplastic insulated wire. Individual conductors are coated with a layer of color coded FEP. The insulated conductors are then parallel duplexed with an additional layer of color coded FEP. The finished construction has a continuous temperature rating of 400°F (204°C). Abrasion, moisture and chemical resistance exceed most other insulations.

This construction is widely used when pulling long lengths of wire through conduit. FEP’s low friction coefficient and abrasion resistance are suited for these applications.

For higher abrasion resistance consider SERIES 514 Tefzel® insulated constructions.

For higher temperatures specify SERIES 508.

Watlow Thermocouple Grade Wire K24-3-507

• Type E, J, K, N, S and T thermocouple wire
• Compensation extension wire
• Solid or stranded wire
• Wide selection of insulation types
• Color coding
• Metallic overbraids and wraps
• Stock RTD lead wire
• Compliance with recognized agency tolerances
• Insulation temperature ranges from -328 to 2600?F (-200 to 1427?C)
• Tolerances from plus or minus 0.5 C or plus or minus 0.4 percent
• NIST calibration certificates
• ISO 17025 Accredited Lab
