SPDT (single pole double throw), ON-NONE-ON, hole mount, terminal seal, gold flash over silver plating.
The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

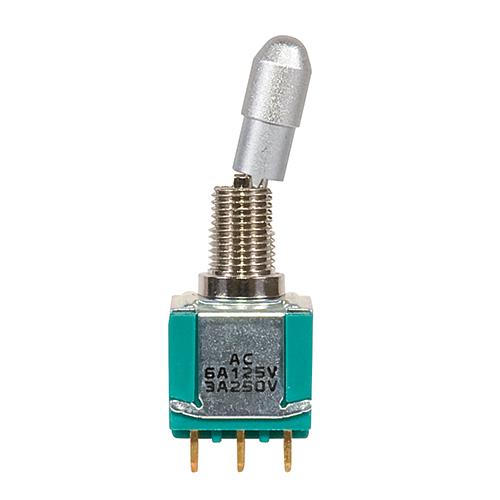

Version MTL-106D is a single-pole, double-throw toggle switch. Positions: ON-ON with 2-position lever lock
Features
- Wire lug, PC terminals
- Threaded panel mount
- Overmolded terminals
- 10 mOhms maximum Initial contact resistance
- 1,000 MOhms minimum insulation resistance
- 1500VRMS at sea level Minimum dielectric strength
- RoHS Compliant
- Break-before-make contact timing
Specifications
Bushing:
1/4-40 UNS-2A
Temperature Range:
-4°F to +176°F (-20°C to +80°C)
Contact current max:
6A @ 125VAC
3A @ 250VAC
4A @ 28VDC
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact configuration:
Single-pole, double-throw (SPDT)
Switch operation:
ON-ON
This item is impacted by the US Tariff policy & attracts a surcharge equal to our cost, included in the price.
Dear Customers,
In light of recent developments regarding tariffs imposed on imported parts into the USA there is a resultant impact on the pricing of some parts
we bring into Australia. Our policy is that we will only pass on the cost imposed on us from our USA supplier.
We are actively exploring alternative sourcing options and working closely with our suppliers to mitigate the impact of these tariffs.
Our goal is to continue offering you the best value on every part you purchase from Edmo Asia Pacific.
We pledge to maintain transparency with our customers throughout this process. Should you have any questions or concerns regarding specific products, please
do not hesitate to reach out to our customer service team. We appreciate your understanding and support as we adapt to these changing conditions on pricing.
Our commitment to providing you with exceptional service and products remains unwavering.
Unit of Measure: EACH
Supplier/Manufacturer SKU: MTL-106D
Mil Spec, TSO, Certification:
HS Code: 8536.50.9040
HAZMAT:
UN#:
