Spring-Fast provides 49% cost savings, 950% productivity increase and best in class high performance. The fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Spring-Fast installs continuously and is very flexible for use on sharp corners and curved edges, such as flanged holes.

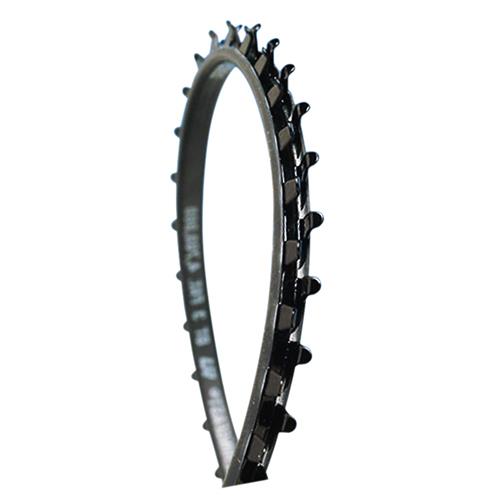

This Spring-Fast grommet edging (EDMO# BT1-0025-) is part of the BT series. It accepts a 0.029–0.045-inch panel thickness, is black in color, and comes on a 25-foot reel.
Features
- Includes a flexible polymer cushion for added abrasion protection
- Operating temperature range: -40ºF to 185ºF (-40ºC to 85ºC)
- For straight edges and inside and sharp outside corners
- Nylon encapsulated stainless steel substrate with a sacrificial cushion for added protection
- Snaps on fast with finger pressure
- Installs continuously with two axis conformity, including right angled corners
- Self locking with strong retention – no adhesives
- Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
- Maintenance is far easier due to its ease of application, use and removal
- Customization available (lengths, colors and print)
Specifications
Panel Thickness:
0.029–0.045 in (0.7–1.1 mm); 20–18 Gauge
Width:
0.19 in (4.8 mm)
Axis Conformity:
Single
Vicat Softening Point per ASTM D01525 Rate B:
TPE Cushion: ISO306 230ºF (110ºC)
Operating Temperature:
-40ºF to 185ºF (-40ºC to 85ºC)
Dielectric Strength:
1500 V
Substrate:
Stainless Steel
Taber Abrasion Resistance:
TPE Cushion per D1044
Finish:
TPE Cushion Black
Salt Spray:
2000 Hours
Immersion:
Per NASM22529 and Skydol Compatible
Random Shock and Vibration:
MIL-STD-1344
Flammability:
UL94 V-0 (File No. E113553 NZMT2)
MIL-STD-202F FAR 25.853A
Telcordia GR-63-CORE
