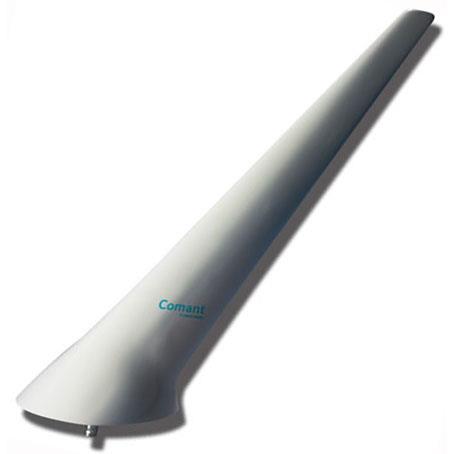

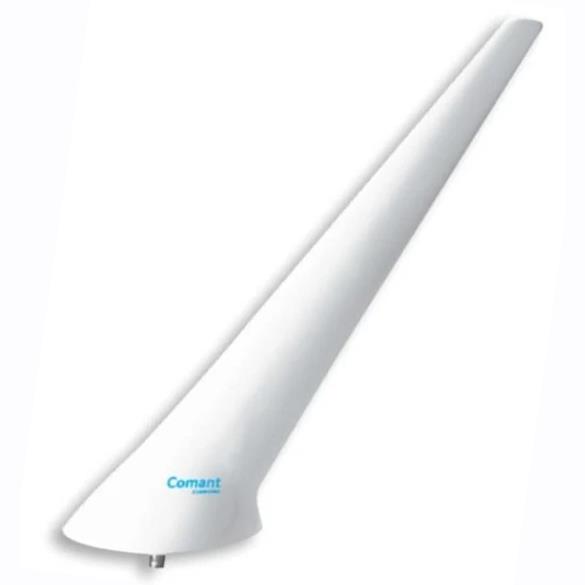

The CI 119 antenna is a four-internal-hole-mount-style blade VHF communication antenna with an offset BNC port equivalent to the CI 138, CI 139, and CI 196, except for variations to the BNC location and hole pattern. The antenna assembly is enclosed in an aerodynamically shaped, injection-molded polyester glass shell with internal components foamed in place for mechanical integrity and is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 118–137 MHz frequency range
- Aerodynamic base
- 4-hole mounting
- Valox 420 housing
- For light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters
Specifications
Weight:
1.25 lbs

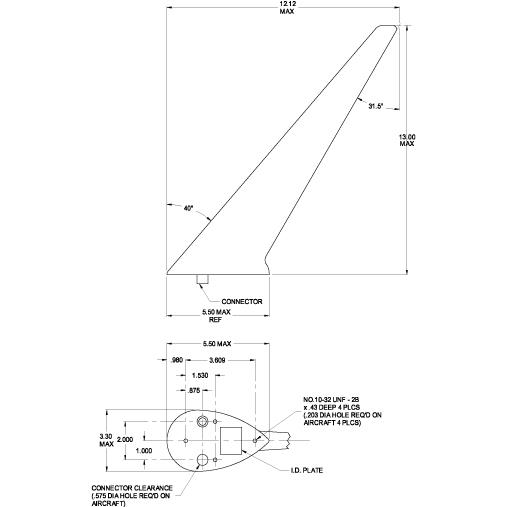

Height:
13 in
Frequency:
118–137 MHz
VSWR:
2.9:1 Max
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
Power:
25 W
Material:
Valox 420
Finish:
Glossy White
Connector:
Offset BNC Female
Temperature:
-55ºC to 85ºC
Altitude:
35,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
C12704 Cork Neoprene
