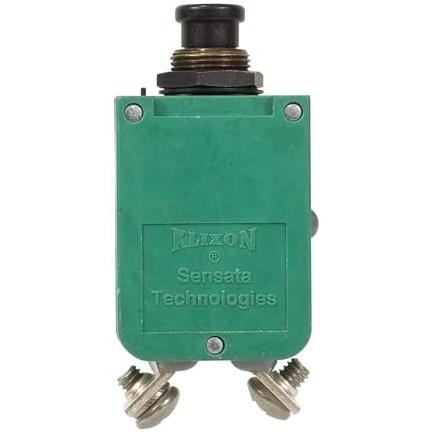

CIRCUIT BREAKER | 15amp, MS25244-15

The 3TC7 series single-phase circuit breakers provide reliable state-of-the-art circuit protection for aerospace systems. The compact and lightweight design makes these circuit breakers well suited for aircraft avionics and electronic systems. The 3TC series ratings is coordinated so any rating will trip before another rating twice its capacity in the event of a fault. Ambient temperature compensation allows the 3TC circuit breakers to operate where temperatures exceeds the 160°F maximum of non–ambient compensated thermal circuit breakers and may also operate in temperatures as high as 150°F without derating the circuit breaker while eliminating the need for added cooling.

Includes hardware.

• Compact & lightweight
• Trip–free design
• AS58091 qualified
• Current rating: 15A – 35A (3TC series)
• Coordinated ratings
• High vibration resistance (option)
• High interrupting capacity
• Typical use: Where ambient temperature exceeds the 160°F (71°C); maximum of non–ambient compensated thermal circuit breakers
