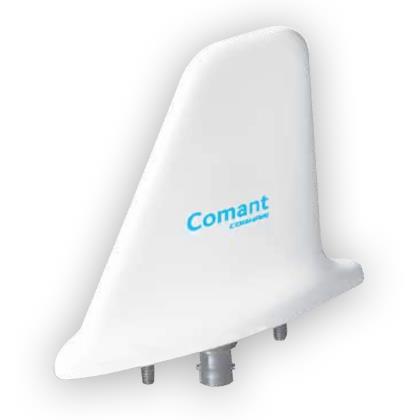

This CI 105 antenna (EDMO# CI-105-11) is a broadband and rugged L-band antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.
Features
- Encased in a glass reinforced polyester molded shell
- Standard two stud mounting configuration
- Includes a TNC connector
Specifications
Weight:
0.24 lb
Dimensions (height):
3.23 in
Finish:
Polyurethane Enamel
Connector:
BNC (female)
Frequency:
960–1220 MHz
VSWR:
1.5:1 @ 960–1220 MHz, maximum
1.3:1 @ 1025–1150 MHz, maximum
Polarization:
Vertical
Radiation Pattern:
Equivalent to a 1/4 wave stub
Impedance:
50Ω
Resistance DC:
Open Circuit
Power RF:
2.5 KW Peak
Operating Temperature:
-54° to 55° C
Altitude:
70,000 ft
Airspeed:
400 Knots TAS at 25,000 ft
Gasket:
B10505
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 105-11
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
