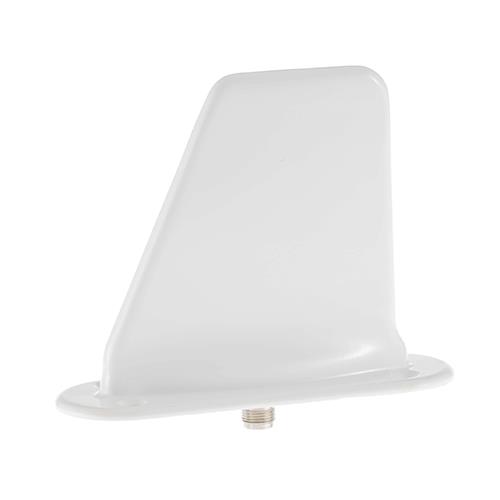

The AV-289 is a broadband blade type antenna for application such as Transponder, Cellular, 4G, GSM, PCS, WIFI, and UMTS. It is also FAA qualified as a transponder antenna.
The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware.
The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet. This antenna has Dual-Band, L-Band, and Wideband capabilities.
Product Specifications
| Model Number | AV-289 |
| Application | Transponder, Cellular, 4G, GSM, PCS, WIFI , UMTS |
| Frequency | 700-799 MHz (Non TSO Function) 800-849 MHz (Non TSO Function) 850-1029 MHz (Non TSO Function) 1030-1090 MHz (TSO C74d) 1091-2700 MHz (Non TSO Function) |
| Impedance | 50 Ohms Nominal |
| VSWR | 2.8 Max at 700-799 MHz 2.2 Max at 800-849 MHz 2.0 Max at 850-1029 MHz 1.5 Max 1030-1090 MHz 2.0 Max 1091-2700 MHz |
| Polarization | Vertical |
| Connector | “TNC” Female (optional: SMA) |
| Pattern | Omni- Directional |
| Max Weight | 0.60 lbs (0.273 kg) |
| RF Power Handling | 100 Watts Continuous, 1000 Watts Peak |
| Gain on 4 ft Round Ground Plane | 4 dBi Nominal |
| Gain on 2 ft Round Ground Plane | 3.5 dBi Nominal |
| Color | Gloss White, Skydrol resistant polyurethane enamel |
| Available Part Numbers | AV-289 “TNC” Female Connector AV-289(-SMA) “SMA” Female Connector |
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-289
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
