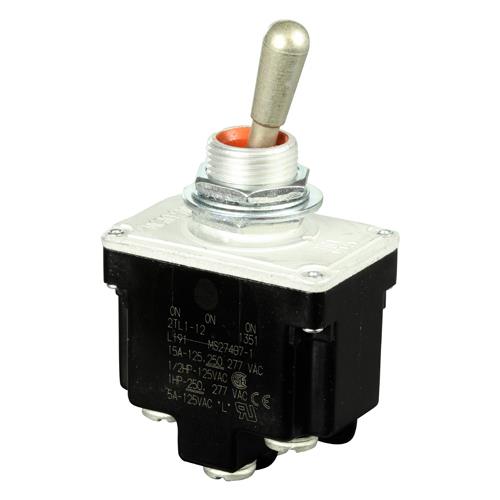

The TL Series Micro Switch toggle switches are sealed to military specifications, MIL-DTL-3950. These sealed toggle switches feature a bonded seal between the toggle lever and bushing, as well as between the cover and case. The robust design makes the 2TL1 series ideal for many military and aerospace applications where reliability is critical. These switches are designed for applications in environments where the panels are subjected to mechanical shock, vibration, and temperature extremes, as well as environments with dust, splashing or hose-directed water. The TL Series toggle provides reliable performance and a long operating life under tough conditions.
This TL Series Micro Switch is a double-pole, double-throw toggle switch. Positions: ON-ON
Features
- Qualified to MIL-DTL-3950
- Environment-proof sealing
- Completely sealed switching chamber
- Innovative Step-design case provides added space between terminals to help prevent shorting
- Robust construction
Specifications
Dimensions:
26.7 x 33.5 x 22.6 mm (1.05 x 1.32 x 0.89 in)
Military Part Number:
MS24524-33
Circuitry:
DPDT
Sealing:
Qualified to MIL-DTL-3950
Operating Temperature:
-65°C to 71°C (-85°F to 160°F)
Switch Mounting:
Panel
Contact Voltage AC:
277V, nominal
Contact Voltage DC:
250V, nominal
Switch Terminals:
Screw
Illumination:
Non-Illuminated
Action:
3 position
Mounting:
Bushing 15/32 in
Actuation:
Standard
Amp Rating:
Up to 20A, AC and DC capability, maximum
Approvals:
UL, CSA, CE
