Product code: AV-265

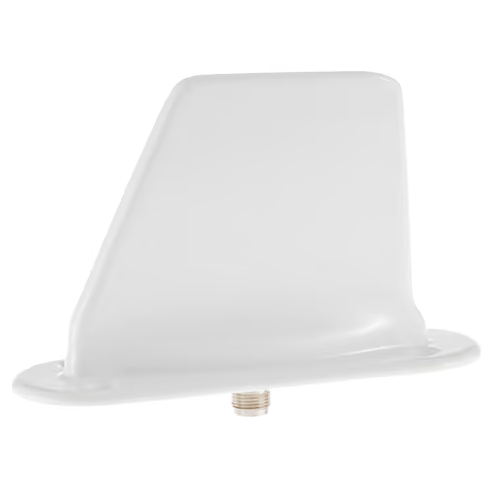

The AV-265 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G LTE, GSM, PCS, WIFI, and UMTS.

$0.00
RRP: $820.00

The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet.

Product Specifications

Model Number

AV-265

Application

Transponder, Cellular, 4G LTE, GSM, PCS, WiFi, UMTS

Frequency

700-2650 MHz
1030-1090 MHz
3400-3700 MHz
4800-5875 MHz

Impedance

50 Ohms Nominal

VSWR

2.5:1 Max at 700-2650 MHz
1.5:1 Max at 1030-1090 MHz
2.5:1 Max at 3400-3700 MHz
2.5:1 Max at 4800-5875 MHz

Polarization

Vertical

Connector

“TNC” Female

Pattern

Omni-Directional

RF Power Handling

100 Watts Continuous, 1000 Watts Peak

Max Weight

0.40 lbs (6.4 oz.)

Color

Gloss White, Skydrol resistant polyurethane enamel



Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-265
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
