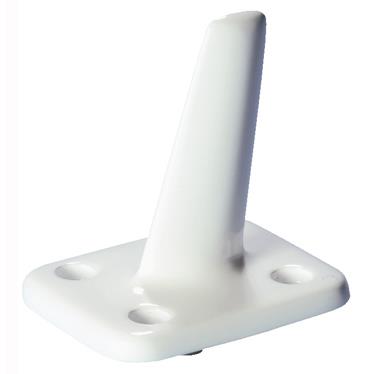

The CI-305 antenna (EDMO# CI-305) four-through-hole-mount style transponder blade antenna with a BNC connector. This antenna has a frequency range that supports both ADS-B Out and DME applications and is suitable for either top or bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- Covers 960–1220 MHz frequencies for ADS-B Out and DME applications
- Vertical polarization
- Equivalent to 1/4 wave stub radiation pattern
- BNC female connector
- Designed for light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.3 lb
Height:
2.85 in
Frequency:
960–1225 MHz
VSWR:
1.8:1
Polarization:
Vertical
Radiation pattern:
Equivalent to 1/4 wave stub
Impedance:
50 Ω
RF power:
1.0 KW (peak)
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature Range:
-55ºC to 55ºC
Altitude:
45,000 ft
FAA TSO:
C66b, C74c
RTCA Environmental:
DO-160A
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 305
Mil Spec, TSO, Certification: C66b, C74c
HS Code: 8529.10.4000
