☠ HAZMAT: Additional shipping precautions are necessary for this item.
To build a full kit:
1/ S1852501-02 AF-H INTEGRA
2/ S1850551-04 Mounting Bracket for INTEGRA AF (or S1850551-02 Universal Mounting Bracket for AP & Integra Arinc)
3/ S1820513-18 REMOTE CONTROL PANEL, RC200 KIT
4/ S1820514-03 DIN12 CONNECTOR
5/ S1840506-01 SUB-D 9 pts female connector

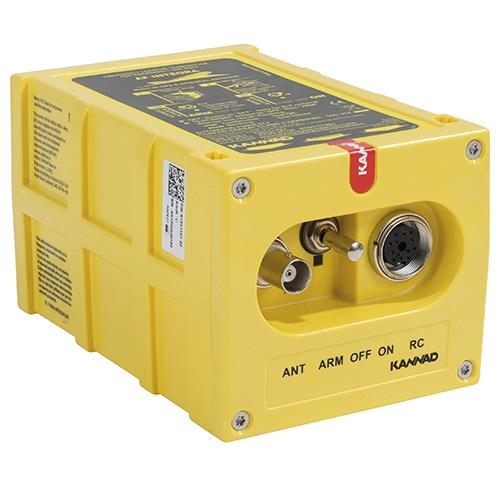

The Integra 406 ELT offers an efficient option installing or retrofitting a 406 MHz ELT with GPS capabilities in an individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT satellite network in conjunction with a homing signal on 121.5 MHz which allows rescuers narrow down the search area to 490 square miles. With the Integra's GPS capabilities, it is possible for the ELT to send exact GPS coordinates of a crash sites location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.
Features:
- Automatic fixed (AF) emergency locator transmitter
- Operates on 406 MHz and 121.5 MHz frequencies
- Integrated internal 406 MHz backup antenna
- Lightweight and compact size
- Does not require an external power supply
- Remote control panel offers optional 2-wire or 3-wire installations
- Universal mounting bracket provides easy retrofitting
- NMEA Integra e-Nav cable provides the option to connect to aircraft GPS unit
