ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

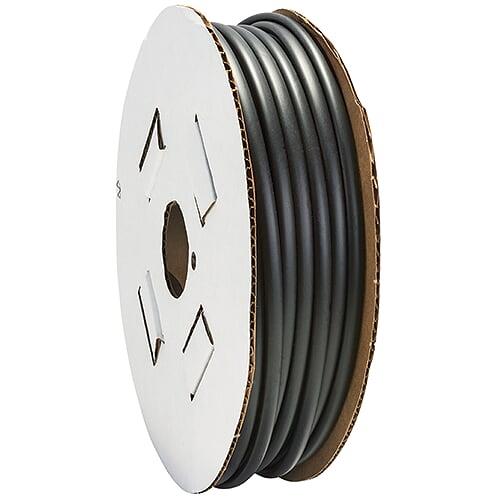

This HIX heat shrink tubing (EDMO# HIXR-3/8) has a 3/8 inch diameter, colored black, and comes as a 100 foot roll.
Specifications
Diameter:
3/8 in
Length:
100 ft roll
Minimum Expanded I.D.:
0.375 in (9.53 mm)
Maximum Recovered I.D.:
0.188 in (4.76 mm)
Recovered Wall Thickness:
0.025 in (0.63 mm)
Operating Temperature:
-67°F to 275°F (-55°C to 135°C)
Shrink Ratio:
2 to 1
Shrink Temperature:
250°F (121°C)
Color:
Black (other colors available)
Application Specifications:
SAE-AMS-DTL-23053/5, Class 1 and 2
UL File Number:
E52612 (VW-1 except Clear)
Unit of Measure: FEET
Supplier/Manufacturer SKU: HIX-3/8 BLACK SPOOLED
Mil Spec, TSO, Certification: M23053/5-107-0
HS Code: 3902.30.0000
HAZMAT:
UN#:
