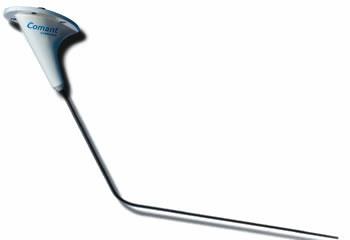

The CI 222-1 antenna is a four-through-hole-mount style FM receive-only bare bent antenna with a BNC port. This antenna is designed for listening to FM broadcasts and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- 88-108 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- 4-hole mounting
- BNC female connector
Specifications
Weight:
0.50 lb
Height:
8.5 in
Whip Length:
20.0 in
Frequency:
88–108 MHz
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Power (RF):
50 W
Material:
Cast Zinc Housing/Stainless Steel Whip
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55ºC to 85ºC
Mounting Configuration:
4 Hole
FAA TSO:
C37d, C38d
Gasket:
B12607-3
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 222-1
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
