Home Turn Coordinator, 11-32VDC, 3-Pin, Brushless, Lighted

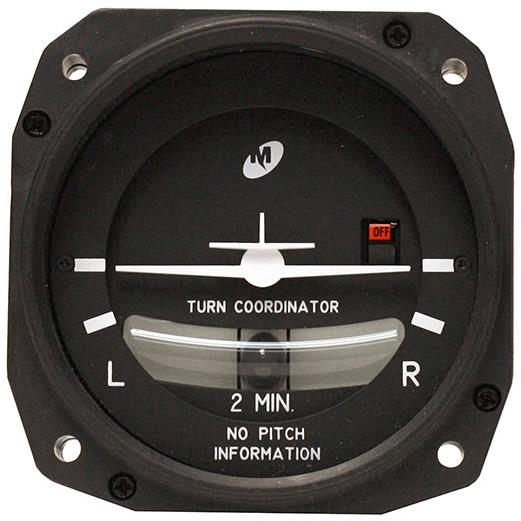

Turn Coordinator, 11-32VDC, 3-Pin, Brushless, Lighted

Out of stock
Product code: 1394T101-3B

Turn Coordinator, 11–32 VDC with a 3-pin connector, has a lighted bezel and brushless rotor.

$0.00

Superscedes PN: 1394T100-3B (Updated TSO - was -C3b, now -C3e)

The 1394T Series Turn Coordinator displays the rate of turn, quality and coordination of the turn, and roll information. Measurements are made relative to the strength of the force of gravity and the force of inertia caused by a turn.

Operates on 11-32V with a 3-pin connector, has a lighted bezel and brushless rotor.

  • 4,500 hours MTBF
  • Standard 2–minute turn indication
  • 11 – 32V input voltage range
  • 0.80A max starting, 0.35A running
  • Lighted bezel
  • White inclinometer background with black ball
  • HEA non-glare glass (when specified)
  • Compact 3 1/8" size fits standard panel cutout
  • Front or rear panel mount
  • One-year limited warranty
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified to C3b
