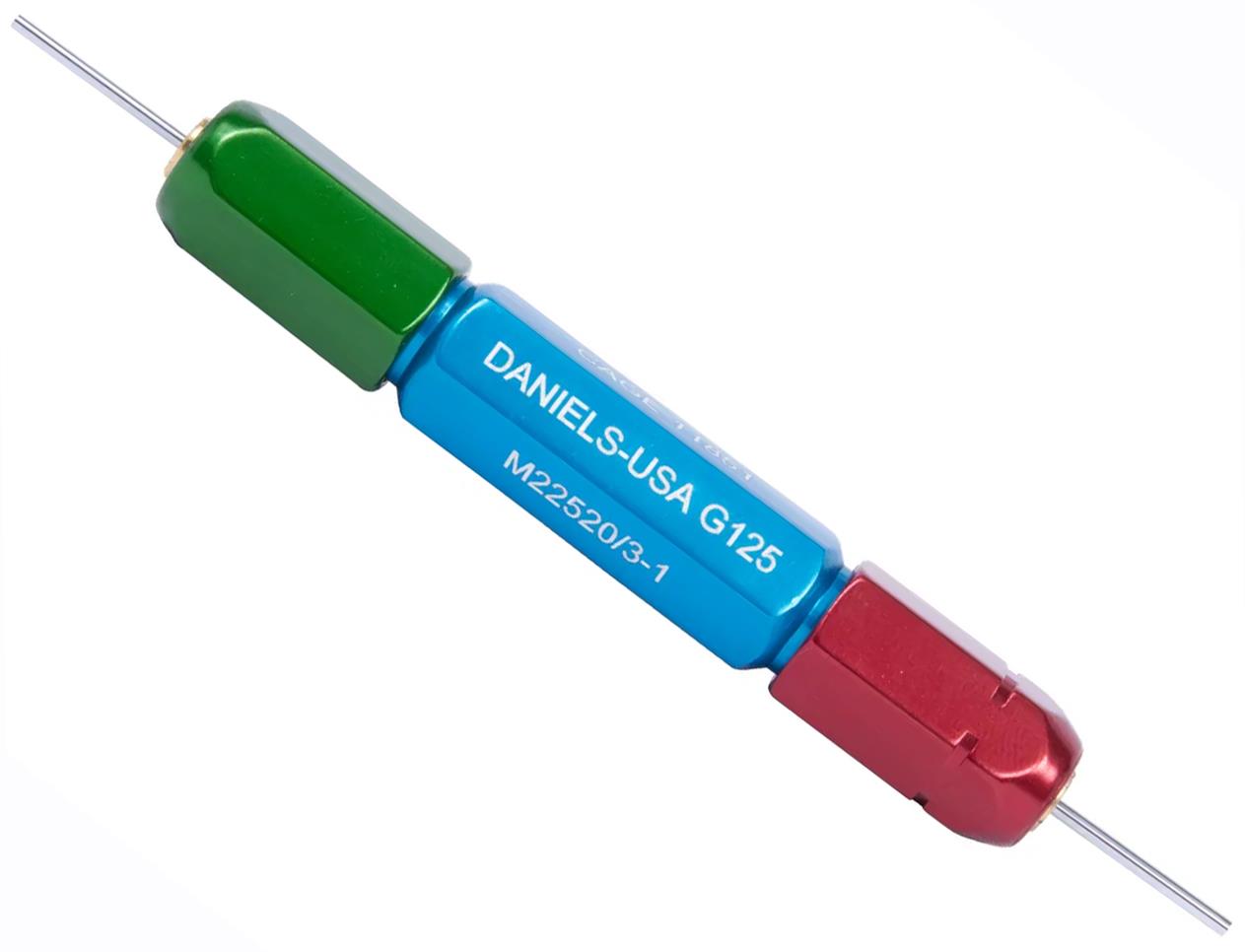

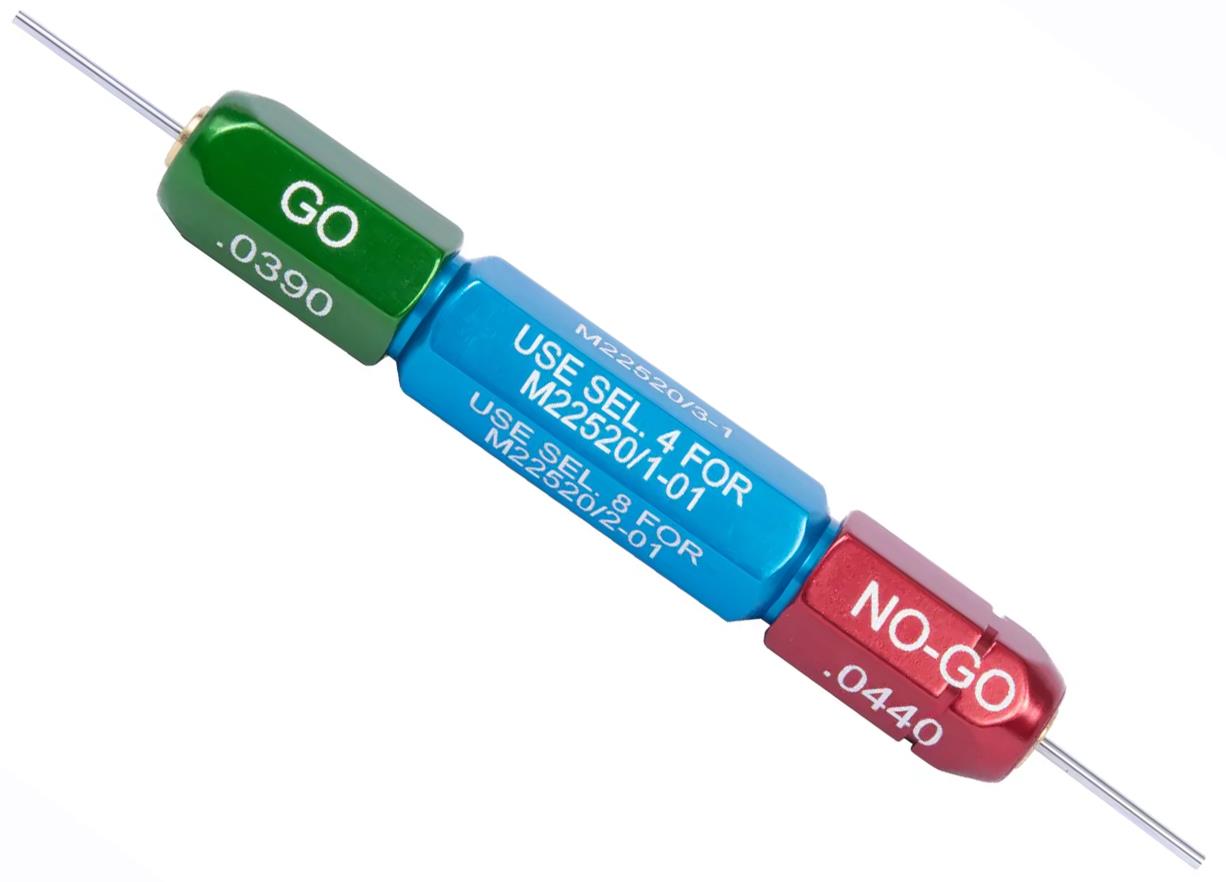

DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.
This go/no-go gauge (EDMO# G1151) has a is used on the HD51-115N, HD51-119N, and HD51-200 die sets and has a gage range of 0.0520 (GO) to 0.0570 (NO-GO).
Features
-
Gage Tolerances: GO 0.0390 – NO-GO 0.0440
-

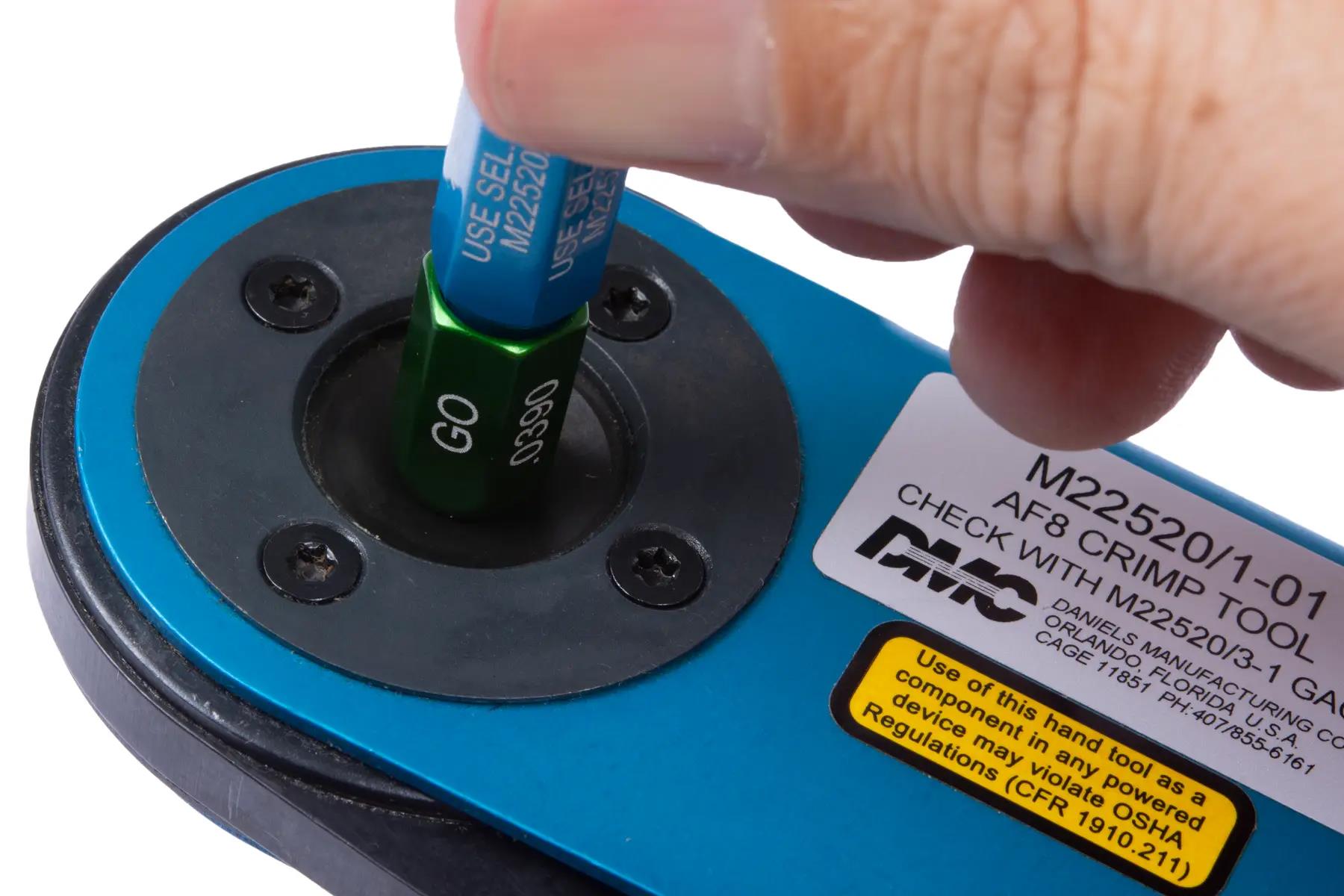

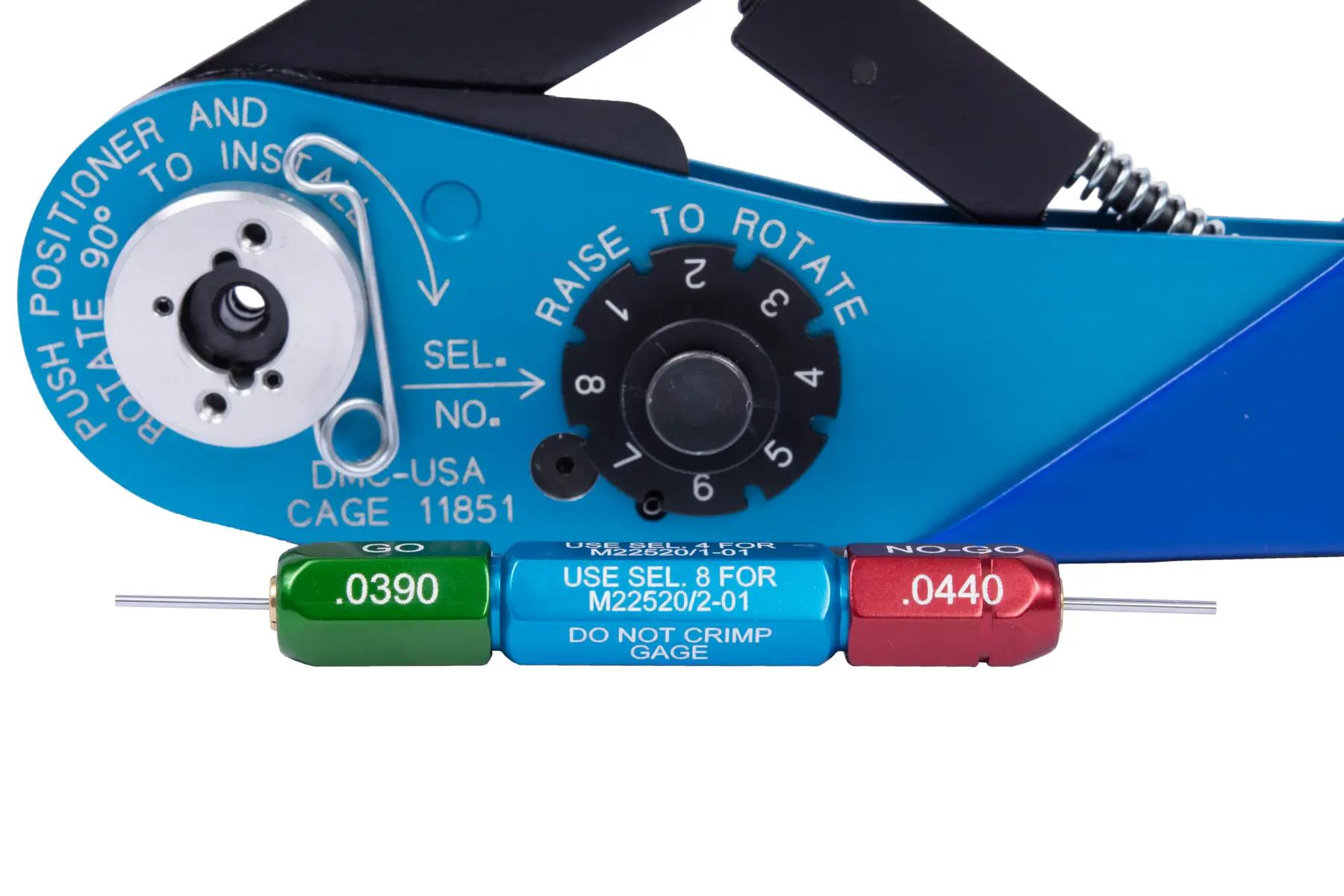

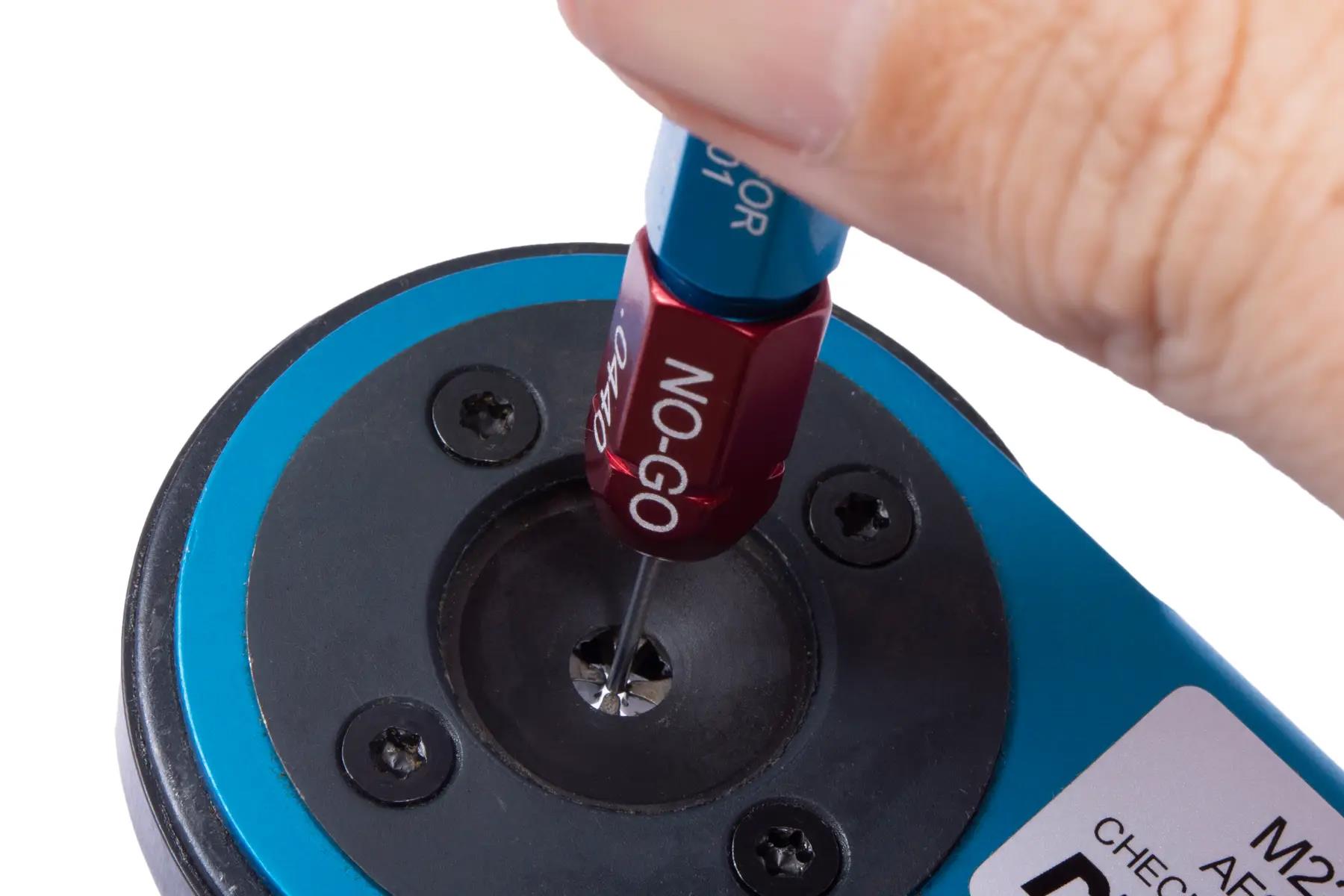

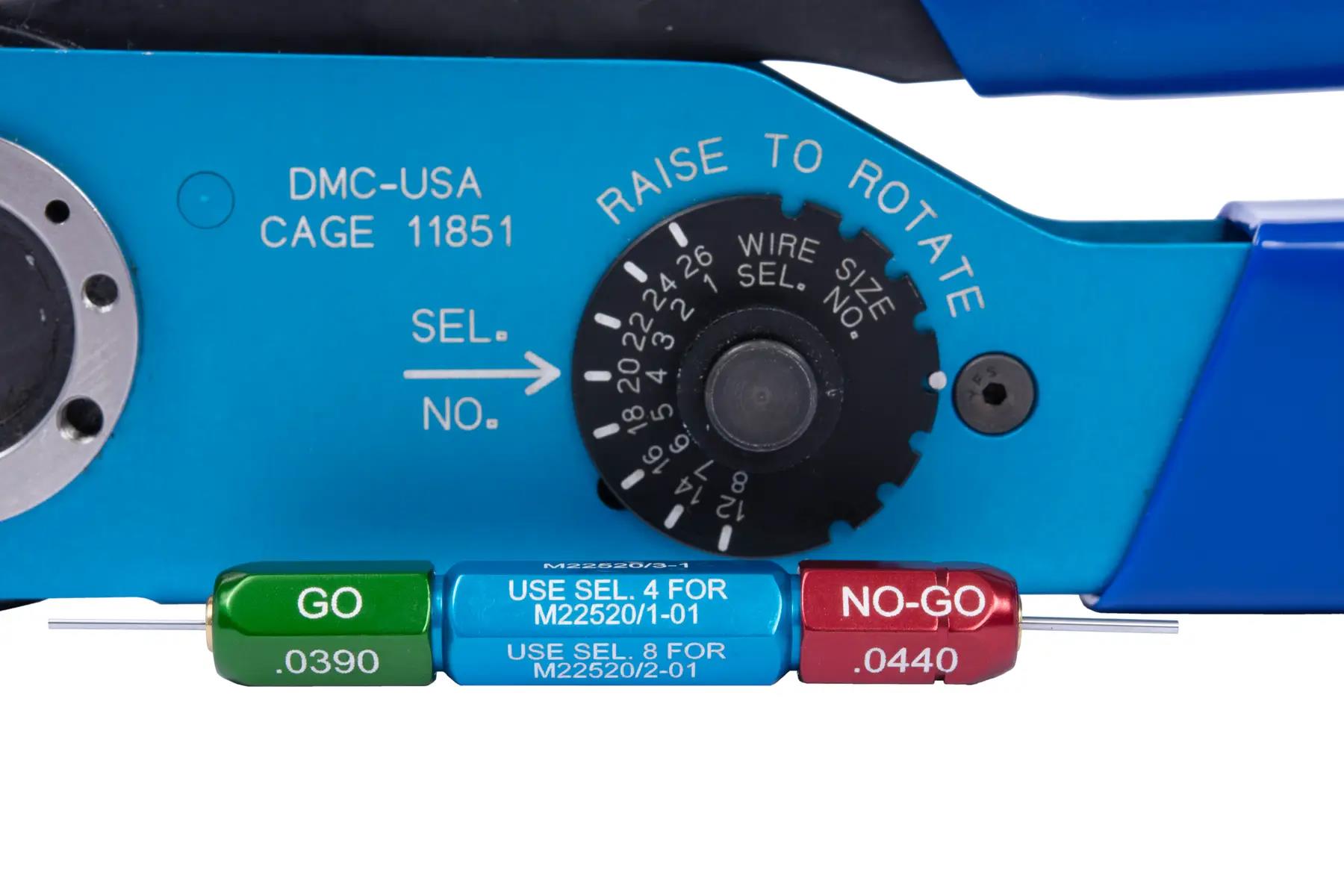

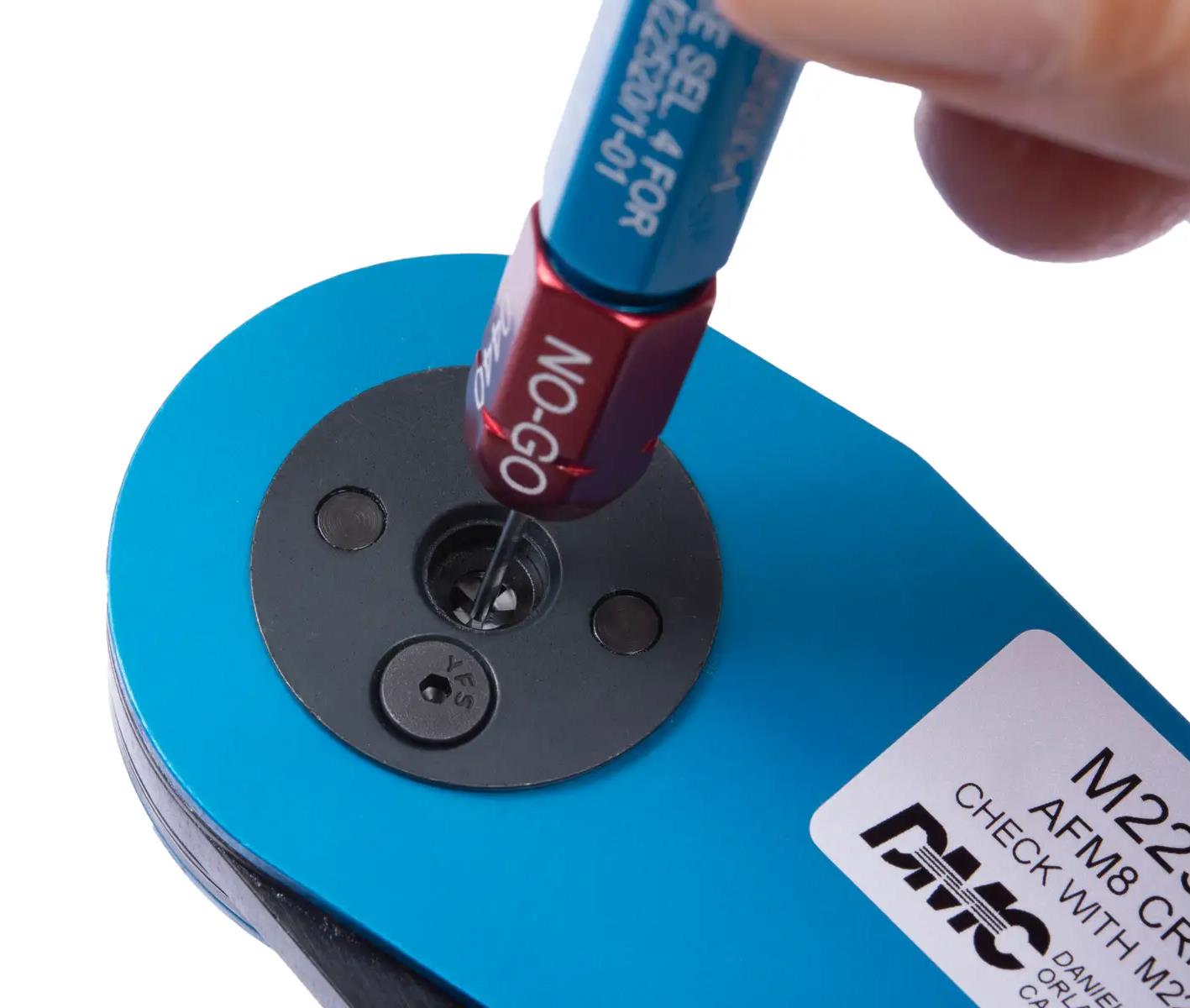

Used with the AF8 & AFM8 hand crimp tools
-
Qualified to AS22520/3 standards
Specifications
Weight:
0.131 lb
Length:
2.5 in, approx. (handle)
Tolerance:
GO: 0.0390 ±0.0001
NO-GO: 0.0440 ±0.0001
Unit of Measure: EACH
Supplier/Manufacturer SKU: G125
