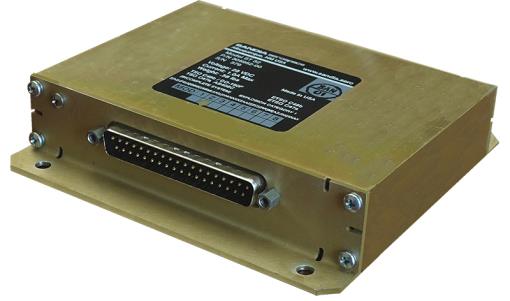

The ST 32 is a dual function signal conditioner that converts four channels of the sinusoidal output of Tach Generators and one channel of analog strain gauge pressure to a digital signal that can be used by aircraft display and/or control systems. The ST 32-01 has reverse protection diodes on pins 1 and 20 that allow the ST 32-01 to be powered from independent power buses.
This ST 32 comes without the install kit. Install kit must be purchased through Garmin.
Specifications
Weight:
0.62 lb
Dimensions:
4.8 x 4.8 x 1.0 in
Operating Voltage:
18–32.2 VDC
Current:
Less Than 1 A (Heater On), Less Than 100 mA (Heater Off)
Operating Temperature:
-55°C to 70°C
Operating Altitude:
55,000 ft
Unit of Measure: EACH
Supplier/Manufacturer SKU: 305952-00
Mil Spec, TSO, Certification:
HS Code: 8803.90.9000
HAZMAT:
UN#:
