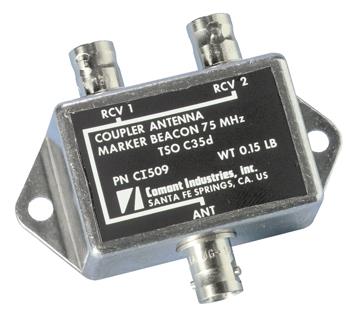

The CI 509 marker beacon signal coupler is a two-through-hole-mount style coupler with BNC ports. This coupler separates a single Marker Beacon antenna signal into two Marker Beacon signals and is designed for Marker Beacon only coupling applications. It is suitable for internal aircraft mounting.
Features
- For internal mounting location
- FAA TSO authorized
- BNC female connectors
- 75 MHz frequency
Specifications
Weight
0.20 lbs
Height:
0.88 in
Frequency:
75 ± 0.15 MHz
VSWR:
1.5:1
Isolation:
20 dB
Insertion Loss:
0.5 dB
Impedance:
50 Ω
Material:
Die Cast Aluminum
Finish:
Aluminum
Connectors:
BNC Female
Mounting Locations:
Internal
FAA TSO:
C35d
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 509
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
