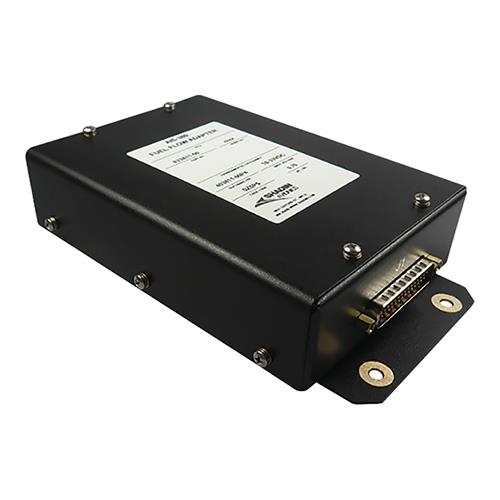

Shadin’s RemoteFlo is a fuel computer that supplies fuel flow and range ring information to compatible GPS and other aircraft displays or systems eliminating the need for an additional cockpit indicator. Utilizing upgraded and more reliable technology, the RemoteFlo saves cost over a Fuel/Airdata installation and eliminates the need for panel space. The RemoteFlo can interface directly with Digital Frequency fuel flow signals; with a converter for sine wave signals.
Version (EDMO# 833811-01) receives a digital frequency signal from a fuel transducer or equivalent, ARINC 429 air data, and ARINC 429 heading. This data is combined and re-transmitted on an ARINC 429 or RS-232 serial output bus.
*Install kit NOT included. PN: K833811-00
Features
Features when interfaced with GPS:
- Transmission of ARINC 429 or RS-232 air data and heading
- Receives digital frequency signal
- Specific Range, Efficiency
- Fuel to Destination
- Fuel Reserve
- Endurance
- Fuel Flow
- Fuel Used
- Fuel Remaining
Specifications
Weight:
0.7 lb
Dimensions:
1.57 x 6.9 x 4.24 in
Power Supply Voltage:
28 VDC Nominal
Supply Current:
100 mA at 28 VDC
Operating Temperature:
40° to 70°C
Operating Altitude:
Up to 42,000ft
Storage Temperature:
-55° to 85°C
In-Flight loss of Cooling:
Equipment can run indefinitely with no cooling
Regulatory:
TSO-C44c INCOMPLETE SYSTEM
Software:
DO-178B Level C
Unit of Measure: EACH
Supplier/Manufacturer SKU: 833811-01
Mil Spec, TSO, Certification: C44c Incomplete System
HS Code: 9026.90.0000
