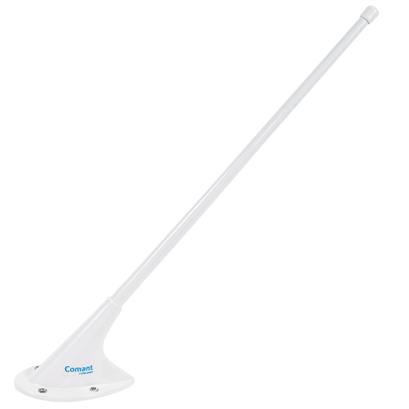

The CI 177 antenna is a four-through-hole-mount style FM communication whip antenna with a BNC port. This antenna is designed for use over the public service FM frequency 2-meter band and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- 148-174 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Molded base
- 4-hole mounting
- Enclosed radiating element
- High strength tapered glass laminate housing
Specifications
Weight:
0.50 lb
Height:
14.5 in
Frequency:
148–174 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Resistance DC:
Open Circuit
Power (RF):
50 W
Material:
Die Cast Housing/Fiberglass Whip
Finish:
Glossy White
Connector:
BNC Female
Temperature Rating:
-55ºC to 55ºC
Altitude:
25,000 ft
FAA TSO:
C37b, C38b
RTCA Environmental:
DO-138
Gasket:
B12607
Dimensions: 80.00 x 90.00 x 625.00 mm (H x W x L)
Weight: 456.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 177
Mil Spec, TSO, Certification:
HS Code: 8529.10.0000
HAZMAT:
UN#:
