Home DIPLEXOR | VOR/GS Antenna - VOR & GS Receiver, BNC, RAMI

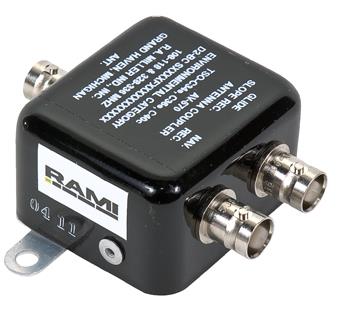

DIPLEXOR | VOR/GS Antenna - VOR & GS Receiver, BNC, RAMI

Out of stock
Product code: AV-570

The AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver. This product is a direct replacement for the CI 507.

$0.00
RRP: $245.00

The diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.


Product Specifications
Model AV-570
Application VOR/LOC/GS (Receive Only)
Frequency 108-118 MHz
328-336 MHz
Impedance 50 Ohms Nominal
VSWR 1.4:1 Maximum
Insertion Loss 1 dB Maximum
Isolation 38 dB Minimum
Connectors (3) “BNC” Female
Max. Weight 3.5 oz.
FAA TSO C34e, C36e, C40c
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-570
Mil Spec, TSO, Certification: C34e, C36e, C40c
HS Code:
HAZMAT:
UN#:
