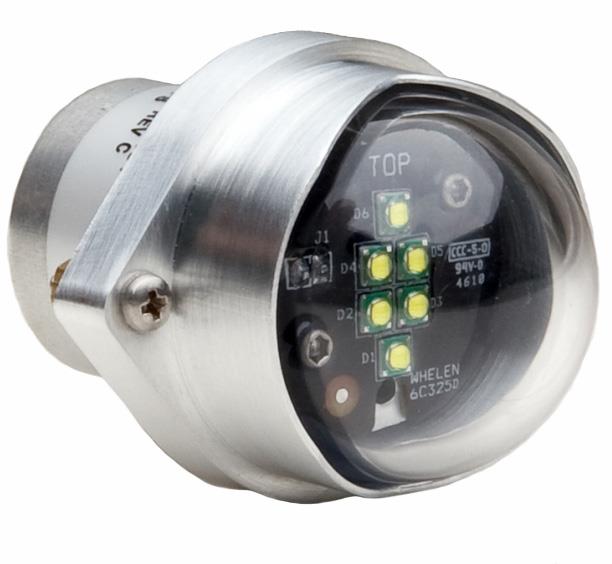

Tail Position Light, LED, 28V, Vertical

71554 Series in our newest LED Tail Position Light. Exact Footprint for Whelen Models A555A and 71011 Taillights. Available in horizontal or vertical mount. Models -01 and -02 come with flying leads. Model -03 has a pin and a ring terminal for connections.

Vertical  = aircraft mounting holes at 12 & 6 o’clock positions

Horizontal = aircraft mounting holes at 9 & 3 o’clock positions

Drawing: 71554

Weight: 0.14 lbs

Dimensions: H x W x L Exposed Height: 1.4 (35.56mm) x 1.59 (40.38mm) x 2.07 (52.57mm)

Current Draw: 0.13 Amps @ 28 VDC 0.26 Amps @ 14 VDC

Available Colors: Aviation White

Lenses: Clear Hard-coated Polycarbonate
