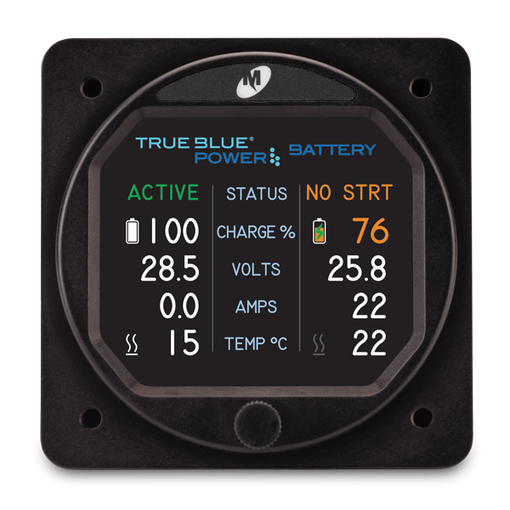

The TSO-certified MD23-104 Digital Annunciation Control Unit monitors and displays True Blue Power® Gen5 Lithium-ion Battery parameters. It provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data. Night Vision Imaging System (NVIS) compatible versions are available
Benefits
-
Monitors and displays True Blue Power® Gen5 lithium-ion battery parameters
-
Provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data
-
Local Time and Flight Timer (available)
-
Night Vision Imaging System (NVIS) compatible (available)
-
Fits standard 2-inch panel cutout
-
Rechargeable, field-replaceable emergency battery (available)
-
Lightweight — 0.4 lbs
-
Simple user interface — Push-and-turn control knob
-
Daylight readable LCD and smooth, high-resolution graphics
-
External lighting control and built-in photocell for automatic dimming
-
Field-upgradeable software via standard USB-A port
-
TSO-certified hardware and software (Design Assurance Level A)
-
Designed and built in Wichita, Kansas, USA
-
Two-year limited warranty
Specifications
Power Input
10–32 VDC
0.14 A @ 28 VDC; 4 watts nominal
Data Input
ARINC 429
Data Output
ARINC 429
Battery
Rechargeable coin cell (memory only)

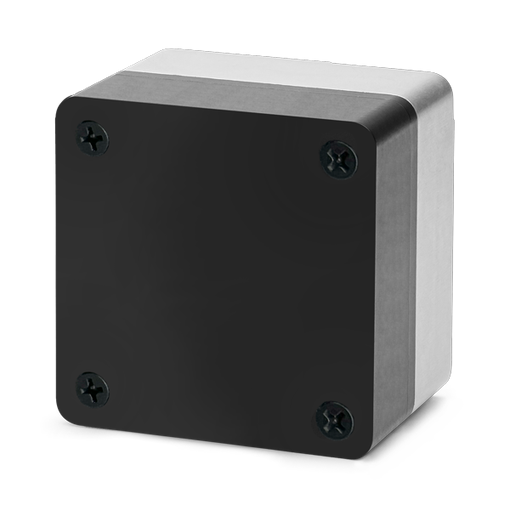

Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A
Weight
0.4 lbs (0.17 kg)
Mounting
Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Dimensions
2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm x 25.4mm)
Mating Connector

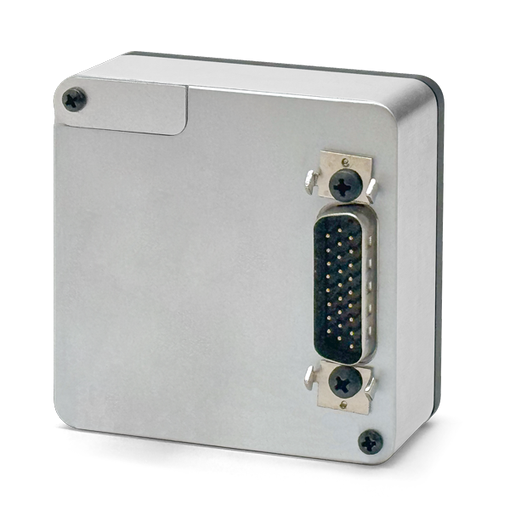

P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
Certification
FAA TSO certified to C2d, C106, C113b
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights
U.S. Patent 11,048,389
